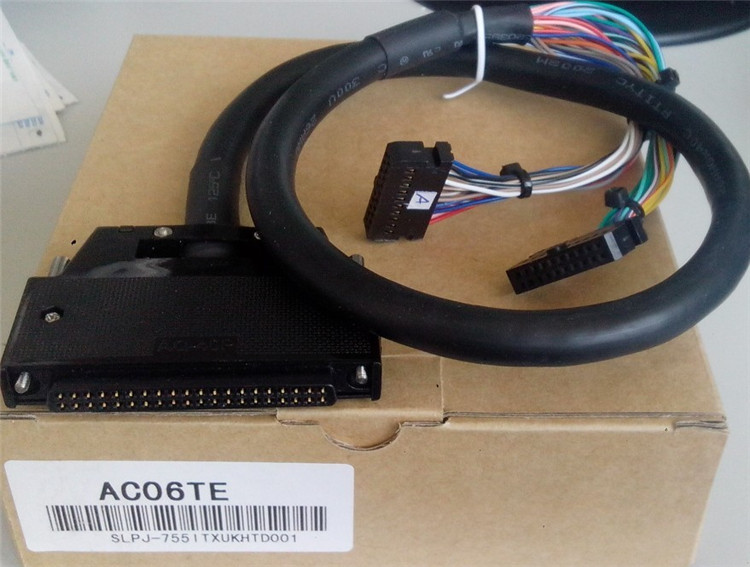

MITSUBISHI MITSUBISHI AC06TE Price

Protective film for 10.4 inch screen.
Scrub (frame: white), 5.
Applicable model: GT15. Motor series: low inertia, medium and small capacity.
Using a serial absolute / incremental encoder.
Rated output power: 0.4kw.
Rated speed: 3000rpm.
With the brake: without.
Shaft end: straight shaft.
Comparison of single phase induction motor and servo motor.
The working principle of the AC servo motor is similar to that of the single phase induction motor,
But the rotor resistance of the former is much larger than that of the latter,
So the servo motor is compared with the single machine asynchronous motor,
There are three notable features:
1, large starting torque AC06TE
2, a wide range of operation.
3, no rotation phenomenon.
AC servo motor running smoothly, low noise.
But the control characteristic is non-linear, and because the rotor resistance is big, the loss is big, the efficiency is low,
Therefore, compared with the same capacity DC servo motor, the volume is large and the weight is heavy,
So it is only suitable for 0.5-100W small power control system. The operation, monitoring, parameter modification and other operations can be carried out by computer or PLC.Servo motor series: low inertia, medium / high power.
Rated output: 15kw.
Rated speed: 1500r/min.
Electromagnetic brake: No.
Shaft end specification: Standard (straight axis).
Voltage: 400V level.
Features: low inertia for high speed / acceleration and deceleration operation occasions.
IP level: IP67.
Application example:
1, food processing machinery.
2, printing machine.
3, injection molding machine (11KW, 15KW).
4, large press machine (11KW, 15KW).
The protection level of the HF-SP/HF-JP series servo motor is IP67 (except the shaft part).
Low inertia of the power servo motor (0.5kW ~ 9kW), the maximum speed: 6000r/min (rated speed: 3000r/min),
Suitable for high frequency positioning and acceleration / deceleration operations, especially for food processing machines and printing machines.
Low inertia, high power, no cooling fan servo motor (11kW and 15kW), maximum speed: 3000r/min (rated speed: 1500r/min).
The motor structure is more compact due to the adoption of the non cooling fan design, and the connection is reduced by using the power source connector.
(compared with the HF-LP series servo motor with the same power, the volume is reduced by about 46%, and the weight is reduced by about 34%,
Suitable for high frequency positioning and acceleration / deceleration operations, especially for injection molding machines and large presses.
HF-JP703 (4) /903 (4) maximum speed: 5000r/min.
AC06TE Operation manual / Instructions / Catalog download link: /searchDownload.html?Search=AC06TE&select=5
