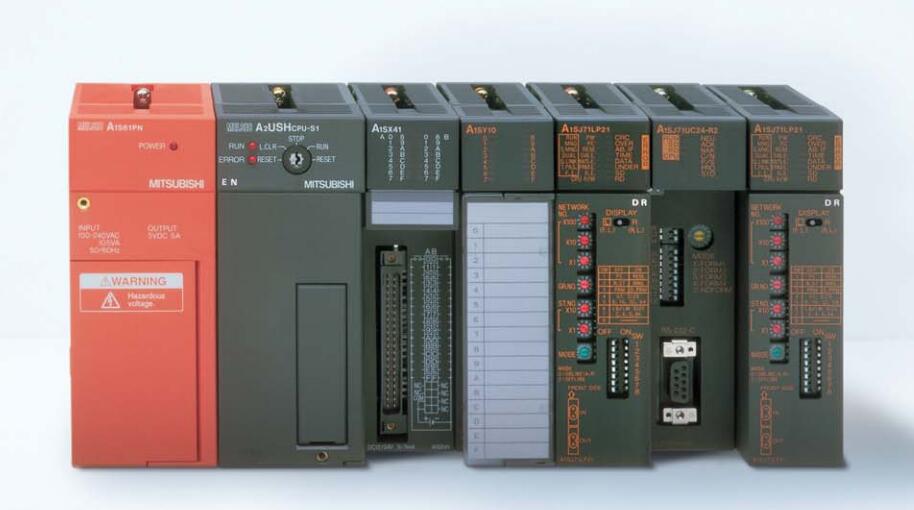

MITSUBISHI MITSUBISHI AS91 Price

2 axes, open collector output type.
2 axis linear interpolation.
2 axis interpolation.
Control unit: mm, inch, degree, pulse.
Location data: 600 data / axis.
Maximum pulse output: 200Kpps.
40 pin connector.
Positioning module.
Open collector output.
Differential driver output.
Based on the use of open collector outputs and differential drive output type 2 types.
Differential driver output type positioning module can transmit high speed instruction pulse (up to 4Mpps) to the servo amplifier reliably,
Transmission distance of up to 10 meters, to achieve high speed and high precision control AS91
(the command pulse of the open collector positioning module is highest 200kpps.) "Transistor output.
Axis of control: 2.
Control unit: mm, inch, degree, pulse.
Location data: 600 data / axis.
Module backup function: the positioning data, module start data saved to the flash ROM (no battery).
Boot time (operation cycle 0.444ms, 1 axes): 0.3ms.
Maximum output pulse: 200000pulse/s.
The maximum distance between servo system: 2m.
External wiring connection mode: 40 pin connector.
Linear interpolation: 2 axes.
Arc interpolation: 2 axes.
Positioning module
Positioning module can be the highest 5Mpulse/s*1 of the high-speed pulse output up to 4 axis control.
A pulse train input servo amplifier, a step motor driver, etc., which can be connected with a transistor (open collector) or a differential driver input interface, is a universal driver module.
The positioning module includes a transistor output type and a differential driver output type 2, which can be selected according to the connection of the drive module.
When selecting the output type of the differential driver, the high speed pulse of the highest 5Mpulse/s can be output and the longest distance connection of the 10m is carried out.
Position control and speed control can be carried out by the positioning module.
In addition to the previous linear interpolation function, arc interpolation function, but also a new spiral line interpolation function,
Can be used for milling and other complex control purposes. "
