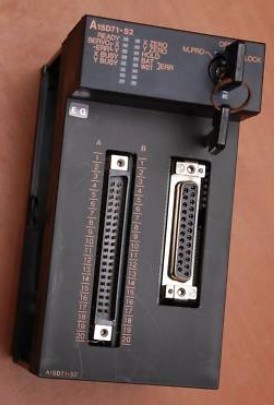

A1SD71-S2 Pulse output positioning control module
MITSUBISHI A1SD71-S2 Manual And Instructions
A1SD71-S2 datasheetPDF datasheet
A1SD71-S2 User's Manual
A1SD71-S2 User's Manual
MITSUBISHI A1SD71-S2 Product information and technical parameters：
Brand: MITSUBISHI
Name: Pulse output positioning control module
Model: A1SD71-S2
Axis of control: 2.
A1SD71-S2 is a linear interpolation of the pulse sequence output type positioning control module,
The stepper motor is suitable for the servo motor.
The fastest positioning speed up to 200Kpps, positioning range 1-16252928 pulse.
According to the specific application setting positioning unit,
If the number of pulses, mm, inches or degrees, but also to provide compensation to improve the positioning accuracy.
