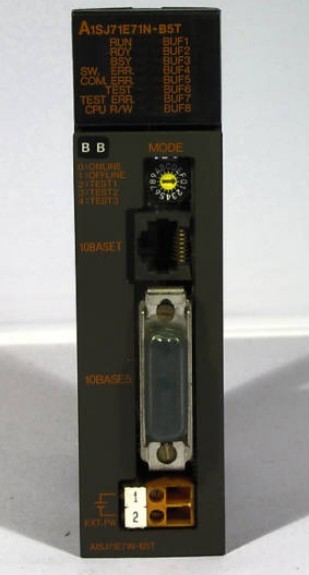

A1SJ71E71N-B5T Ethernet module
MITSUBISHI A1SJ71E71N-B5T Manual And Instructions
A1SJ71E71N-B5T datasheetPDF datasheet
MITSUBISHI A1SJ71E71N-B5T Product information and technical parameters：
Brand: MITSUBISHI
Name: Ethernet module
Model: A1SJ71E71N-B5T
Ethernet Ethernet module 10BASE-T/10BASE5.
MITSUBISHI PLC is the main product in the production of MITSUBISHI motor in Dalian.
It uses a kind of programmable memory for its internal storage procedures,
Execute logic operation, sequence control, timing, counting and arithmetic operations, user oriented instruction,
And through digital or analog input / output control of various types of machinery or production process.
When the programmer input programinto the user program memory,
Then CPU according to the function of the system (the system program memory to explain the compiler),
Translate the user program into PLC internally recognized by the user to compile the program.
