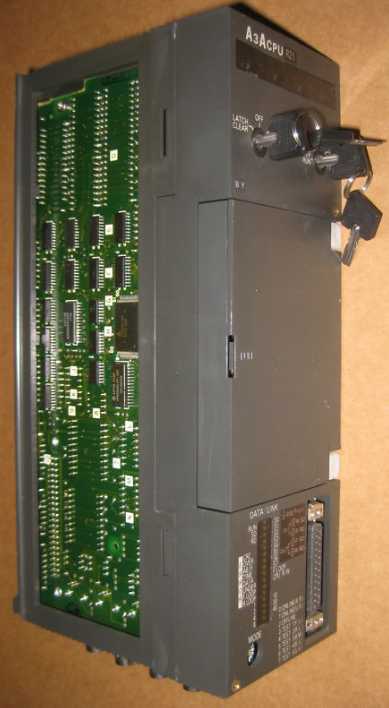

A3ACPUR21 CPU unit
MITSUBISHI A3ACPUR21 Manual And Instructions
A3ACPUR21 datasheetPDF datasheet
A3ACPUR21 Common InstructionsProgramming Manual
A3ACPUR21 HardwareUser's Manual
A3ACPUR21 AD57 control InstructionsProgramming Manual
A3ACPUR21 Dedicated InstructionsProgramming Manual
A3ACPUR21 FundamentalsProgramming Manual
A3ACPUR21 PID Control InstructionsProgramming Manual
MITSUBISHI A3ACPUR21 Product information and technical parameters：
Brand: MITSUBISHI
Name: CPU unit
Model: A3ACPUR21
Input and output points: 2048 points.
Input / output data points: 2048 points.
Program capacity: 30K.
Basic command processing speed (LD command) s:0.15.
Coaxial data communication line function.
Integral type: the PLC components are installed together or a few pieces of printed circuit board,
And together with the power supply installed in the casing to form a single overall called the host or the basic unit, small, ultra small PLC using this structure.
Modular: PLC is the basic components of a separate module.
Medium and large PLC used this way. Easy maintenance.
Each scanning process. Focus on the input signal sampling. Focus on the output signal to refresh.
Input refresh process. When the input port is closed,
Program in the implementation phase, the input end of a new state, the new state can not be read.
Only when the program is scanned, the new state is read.
A scan cycle is divided into the input sample, the program execution, the output refresh.
The contents of the component image register are changed with the change of the execution of the program.
The length of the scan cycle is determined by the three.
CPU the speed of executing instructions.
Time of instruction.
Instruction count.
Due to the adoption of centralized sampling.
Centralized output mode.
There exist input / output hysteresis phenomena, i.e., the input / output response delay.
User program storage capacity: it is a measure of how much the user application can store the number of indicators.
Usually in words or K words as units. 16 bit binary number is a word,
Every 1024 words are 1K words. PLC to store instructions and data in words.
General logical operation instructions each account for 1 words. Timer / counter,
Shift instruction accounted for 2 words. Data operation instructions for 2~4.
