>> A953GOT-TBD 6 inch man machine interface

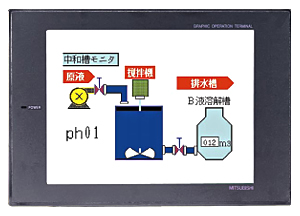

A953GOT-TBD 6 inch man machine interface
MITSUBISHI A953GOT-TBD Manual And Instructions
A953GOT-TBD datasheetPDF datasheet
A953GOT-TBD HardwareUser's Manual
A953GOT-TBD HardwareUser's Manual
A953GOT-TBD Introductory ManualOperating Manual
A953GOT-TBD Connection System ManualUser's Manual
A953GOT-TBD SW4D5C-GOTR-PACKE compatible Connection System ManualUser's Manual
A953GOT-TBD Extended/Option Functions ManualOperating Manual
A953GOT-TBD SW4D5C-GOTR-PACKE compatible Extended/Option Functions ManualOperating Manual
MITSUBISHI A953GOT-TBD Product information and technical parameters：
Brand: MITSUBISHI
Name: 6 inch man machine interface
Model: A953GOT-TBD
Series Name: A953GOT.
Size: 6 inches.
Resolution: 320 * 240.
Display equipment: high brightness TFT color display.
Display color: 256 color.
Power supply: DC24V.
The built-in RS-232 communication interface.
Memory card: 1M.
Design any machine interface, generally have to consider the system response time, user assistance mechanism, error information processing and command mode four aspects.
System response time is too long to be the most users in the interactive system,
In addition to the absolute length of the response time, the user is also very concerned about the difference in response to different commands in response time,
If too wide users will be difficult to accept; user assistance mechanism should be integrated,
Avoid overlay systems that cause users to turn to a guide and have to browse a large number of irrelevant information;
Error and warning information must be selected in terms of user''s clarity and meaning,
At the same time, it should be as far as possible to provide some suggestions on the recovery of errors.
In addition, when the error message is displayed, the effect is better if it is supplemented by the auditory (Bell) and visual (special color) stimulus;
Command mode is the best menu and keyboard commands, for the user to choose.
