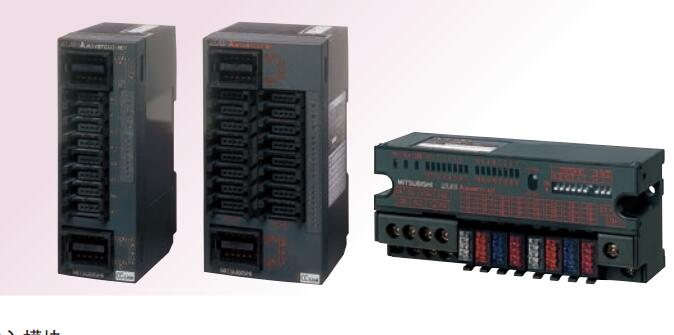

AJ65SBTC4-16DE Fast connector type DC input module
MITSUBISHI AJ65SBTC4-16DE Manual And Instructions
AJ65SBTC4-16DE datasheetPDF datasheet
MITSUBISHI AJ65SBTC4-16DE Product information and technical parameters：
Brand: MITSUBISHI
Name: Fast connector type DC input module
Model: AJ65SBTC4-16DE
Input type: DC input, negative public end.
Input points: 16 points.
Enter the response time: 1.5ms the following.
Rated input voltage / current: DC24V/5mA.
External connection: 4 wire.
Fast connector type.
Simple wiring through quick connector.
Can be installed along the 6 direction.
MITSUBISHI PLC program simulation debugging
The basic idea of program simulation debugging is,
In order to facilitate the form of simulation to generate the actual state of the scene,
Create the necessary environmental conditions for the operation of the program.
Depending on the way the field signals are generated,
The simulation debugging has two forms of hardware simulation and software simulation.
