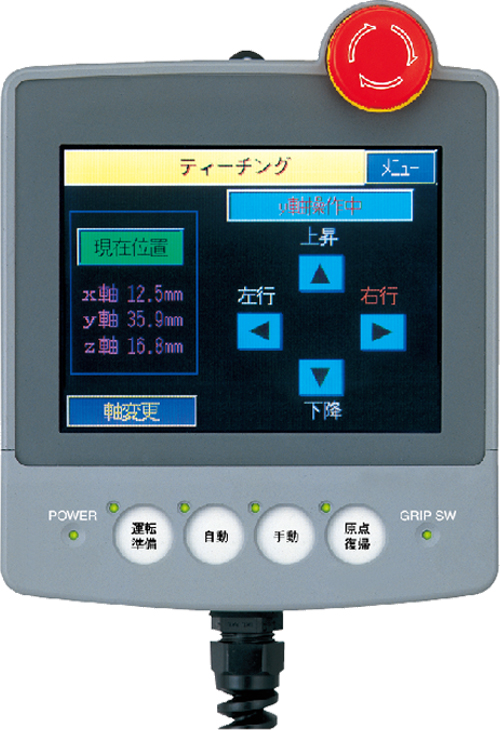

F943GOT-SBD-H-E 5.7 Inch Touch Screen
MITSUBISHI F943GOT-SBD-H-E Manual And Instructions
F943GOT-SBD-H-E Hardware Manual
MITSUBISHI F943GOT-SBD-H-E Product information and technical parameters：
Brand: MITSUBISHI
Name: 5.7 Inch Touch Screen
Model: F943GOT-SBD-H-E
Series Name: hand held F940GOT.
System screen display language: english.
Display: 5.7 inches, can operate in the palm of the GOT.
Display color: 8 color.
Display device: LCD STN.
Resolution: 320 * 240.
Installation type: panel mounting.
The built-in communication port: RS-232C (1ch).
Power supply voltage: DC24V.
GOT-F900 series can be easily applied to a variety of different applications.
3 built-in communication channels.
Screen area.
Through the split screen configuration, you can reduce the operating time.
The image can be divided into two or three parts to display.
According to the user''s application example, the menu screen or the operation of the button sometimes on the screen will often be used to.
As a result, it is very time-consuming and inefficient to make a similar picture every time.
...More relevant models >>>>
