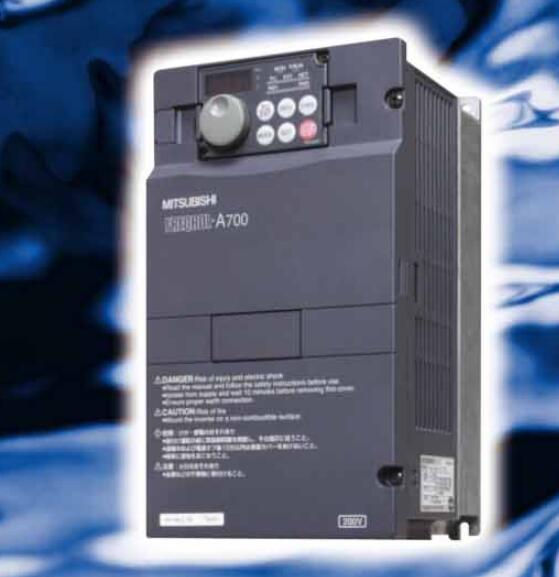

FR-A740-22K-CHT 3 phase 400V converter
MITSUBISHI FR-A740-22K-CHT Manual And Instructions
FR-A740-22K-CHT datasheetPDF datasheet
FR-A740-22K-CHT PLC FUNCTION PROGRAMMING MANUAL
FR-A740-22K-CHT BASICINSTRUCTION MANUAL
FR-A740-22K-CHT AppliedINSTRUCTION MANUAL
FR-A740-22K-CHT TECHNICAL MANUAL
MITSUBISHI FR-A740-22K-CHT Product information and technical parameters：
Brand: MITSUBISHI
Name: 3 phase 400V converter
Model: FR-A740-22K-CHT
MITSUBISHI inverter FR-A740 series.
Voltage level: 3 phase 400V.
Frequency converter capacity: 22KW.
FR-A700 converter products are suitable for all kinds of high load requirements of the equipment.
Such as lifting, lift, printing and dyeing, printing and dyeing, material coiling and other general occasions.
High level driving performance.
Unique sensorless vector control mode,
A wide variety of mechanical equipment can be operated at high precision in the super low speed region without the need of the encoder.
With torque control mode,
And in the speed control mode can use the torque limit function.
With vector control function (with encoder),
Frequency converter can achieve position control and fast response, high precision speed control (zero speed control, servo lock, etc.) and torque control.
...More relevant models >>>>
