>> FR-A820-5.5K-1(FR-A820-00340-2-60) Three phase 200V grade frequency converter

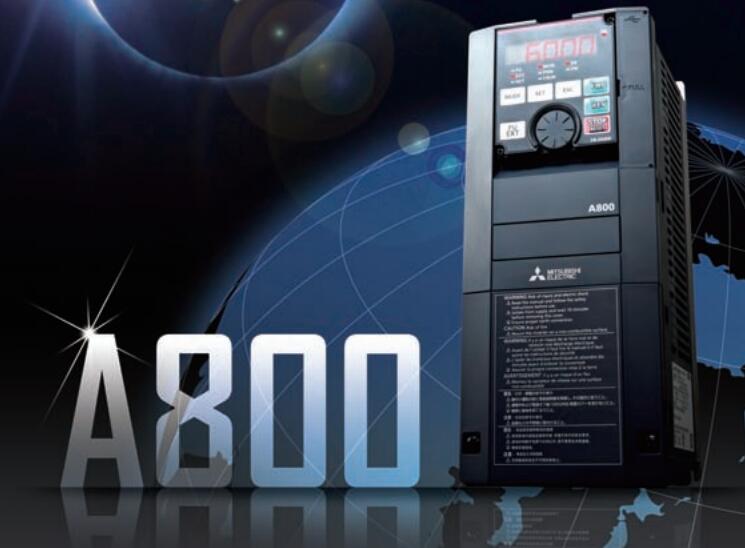

FR-A820-5.5K-1(FR-A820-00340-2-60) Three phase 200V grade frequency converter
MITSUBISHI FR-A820-5.5K-1(FR-A820-00340-2-60) Manual And Instructions
FR-A820-5.5K-1(FR-A820-00340-2-60) datasheetPDF datasheet
MITSUBISHI FR-A820-5.5K-1(FR-A820-00340-2-60) Product information and technical parameters：
Brand: MITSUBISHI
Name: Three phase 200V grade frequency converter
Model: FR-A820-5.5K-1(FR-A820-00340-2-60)
MITSUBISHI inverter series: FR-A820.
Voltage level: three phase 200V.
Power: 5.5kw.
SLD converter rated current: 34A.
Structure and function: Standard model.
Type: CA.
Substrate coating: have.
Parameters can be selected by 4 different rated current and different overload rating (SLD (ultra light load) rated, LD (light load) rating, ND (general load) rating, HD (weight).
Type load) for selection.
You can choose the most suitable frequency converter for use; and by selecting a transducer with a SLD or LD rated level,
Be able to reduce the size of the device (compared with the FR-A700 series, to reduce the volume of equipment).
For applications that require high torque at low speeds, the HD rating is the most suitable.
The controller is used to control and monitor the frequency converter through the network.
Standard corresponding RS-485 communication (MITSUBISHI converter protocol, Modbus-RTU protocol) data transmission speed up to 115200bps.
