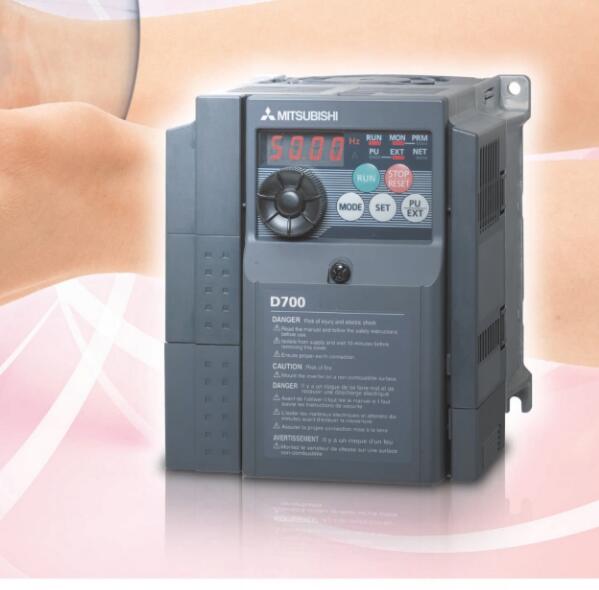

FR-D720-0.1K 3 phase 200V converter
MITSUBISHI FR-D720-0.1K Manual And Instructions
FR-D720-0.1K datasheetPDF datasheet
FR-D720-0.1K BASICInstruction manual
MITSUBISHI FR-D720-0.1K Product information and technical parameters：
Brand: MITSUBISHI
Name: 3 phase 200V converter
Model: FR-D720-0.1K
MITSUBISHI inverter FR-D720 series.
Voltage level: three phase 200V.
Frequency converter capacity: 0.1KW.
Vector control variable frequency speed control is the practice of the asynchronous motor in the three-phase coordinate system of the stator current Ia, Ib, Ic, through the three-phase to two-phase transformation,
The alternating current of Ia1Ib1 is equivalent to a two phase stationary coordinate system, and then is rotated by the rotor field oriented,
Equivalent to the DC current Im1, It1 (Im1 equivalent to DC motor excitation current in synchronous rotating coordinate system;
It1 equal to the armature current proportional to the torque, and then imitate the DC motor control method, to obtain the DC motor control,
The control of asynchronous motor is realized through the corresponding inverse coordinate transformation.
