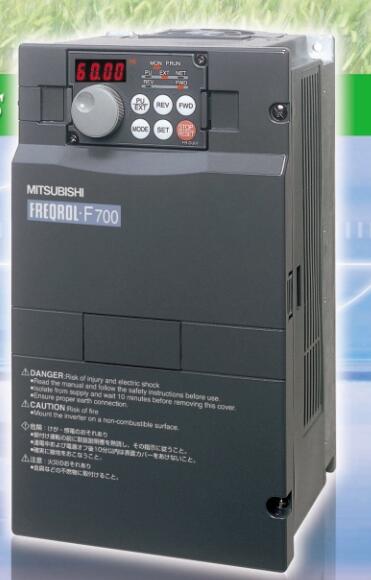

FR-F720-11K 3 phase 200V converter
MITSUBISHI FR-F720-11K Manual And Instructions
FR-F720-11K datasheetPDF datasheet
FR-F720-11K AppliedInstruction manual
FR-F720-11K BASICInstruction manual
FR-F720-11K TECHNICAL MANUAL
MITSUBISHI FR-F720-11K Product information and technical parameters：
Brand: MITSUBISHI
Name: 3 phase 200V converter
Model: FR-F720-11K
MITSUBISHI inverter FR-F720 series.
Voltage level: three phase 200V.
Frequency converter capacity: 11KW.
When the inverter is running, the starting current and starting torque of the motor are how?
With the operation of the inverter, with the acceleration of the motor to improve the frequency and voltage,
The starting current is limited to 150% below the rated current (according to the different types of aircraft, 125%~200%).
Starting with power frequency power supply, the starting current is 6~7 times of the rated current, therefore, the impact on the mechanical and electrical.
The inverter drive can be smoothly start (start time longer).
The starting current is 1.2~1.5 times of the rated current, and the starting torque is 70%~120% rated torque;
For the inverter with the torque automatic enhancement function, the starting torque is more than 100%, which can start with full load.
