>> FR-F840-02160-2-60 Three phase 400V grade frequency converter

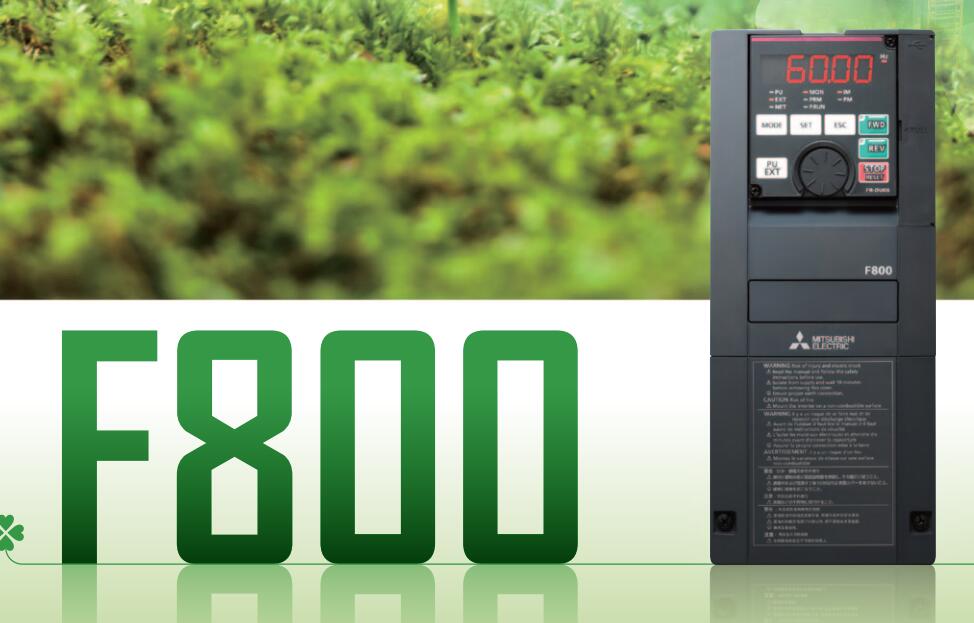

FR-F840-02160-2-60 Three phase 400V grade frequency converter
FR-F840-02160-2-60 Introduce |
FR-F840-02160-2-60 Catalog / Manual / Instructions / Software download
MITSUBISHI FR-F840-02160-2-60 Manual And Instructions
FR-F840-02160-2-60 datasheetPDF datasheet
MITSUBISHI FR-F840-02160-2-60 Product information and technical parameters：
Brand: MITSUBISHI
Name: Three phase 400V grade frequency converter
Model: FR-F840-02160-2-60
MITSUBISHI inverter series: FR-F840.
Voltage level: three phase 400V.
Power: 90kw.
SLD converter rated current: 216A.
Structure and function: Standard model.
Type: CA.
Substrate coating: have.
The motor efficiency is not changed in the previous optimal excitation control,
At the same time, the newly developed advanced optimal excitation control can obtain larger torque at startup.
No need to adjust the parameters (plus deceleration time or torque, etc.), in a short time to speed up to a certain speed,
Can be carried out to maximize the efficiency of energy-saving drive motor.
The automatic tuning function of the loop constant of the motor is not consistent with the constant of the motor, the motor of other manufacturers, and the length of wiring is too long,
Optimum operating characteristic drive motor.
In the state of the sensor can not only drive the high efficiency and energy saving motor and PM motor (MM-EFS), but also can drive other companies induction motor and PM motor (permanent magnet synchronous motor).
Other manufacturers of induction motors, can also be automatically tuned to achieve the best excitation control, thus expanding the use of energy saving.
