FX1N-24MT-D PLC
MITSUBISHI FX1N-24MT-D Manual And Instructions
FX1N-24MT-D datasheetPDF datasheet
FX1N-24MT-D HARDWARE MANUAL
FX1N-24MT-D HARDWARE MANUAL
FX1N-24MT-D PROGRAMMING MANUAL II
MITSUBISHI FX1N-24MT-D Product information and technical parameters：
Brand: MITSUBISHI
Name: PLC
Model: FX1N-24MT-D
Max input / output points: 24 points.
Power supply voltage: DC24V.
Input points: 14 points.
Output points: 10 points.
Output type: transistor.
Power consumption (W): 32.
Weight (kg):0.5.
Size (WxHxD) mm:90x90x75.

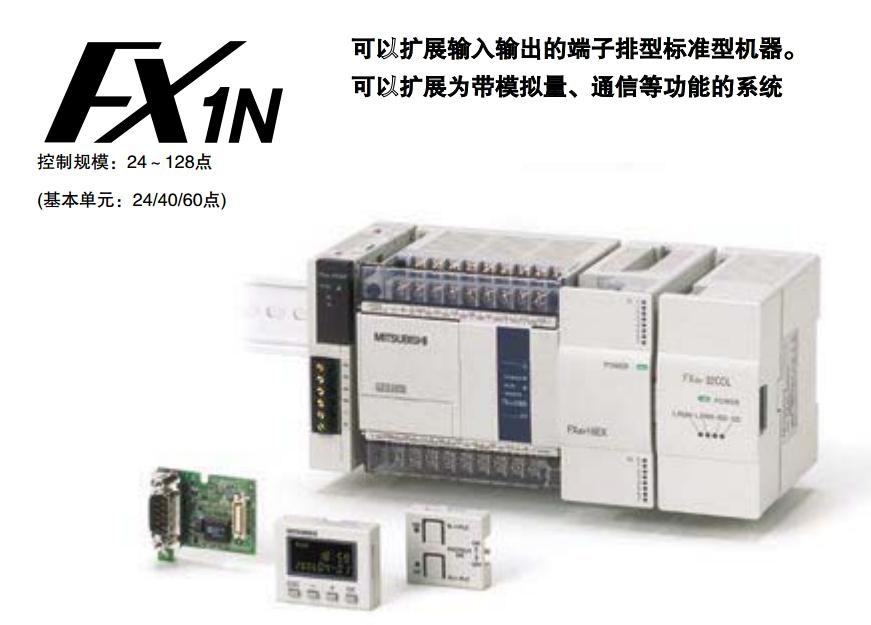

FX1N series is a very powerful micro PLC, can be extended to up to 128 I/O points,
And can increase the special function module or the expansion board.
Communication and data link function options make FX1N in the volume, communication and special function modules and other important applications is very perfect.
A PLC unit can output 2 100KHz pulses at the same time,
PLC is equipped with 7 special positioning instructions,
Including zero return, absolute position readout, absolute or relative drive, and special pulse output control.
