FX1S-20MT-001 PLC
MITSUBISHI FX1S-20MT-001 Manual And Instructions
FX1S-20MT-001 datasheetPDF datasheet
FX1S-20MT-001 PROGRAMMING MANUAL II
FX1S-20MT-001 HARDWARE MANUAL

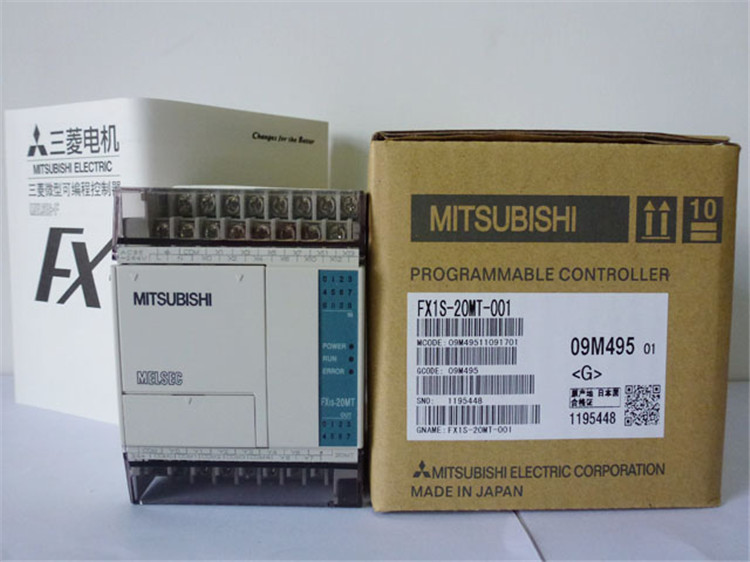

MITSUBISHI FX1S-20MT-001 Product information and technical parameters：
Brand: MITSUBISHI
Name: PLC
Model: FX1S-20MT-001
Total points: 20 points.
Input points: 12 points.
Output points: 8 points.
Voltage: AC220V.
Output type: transistor.
Outline dimension: 75*75*90.
MITSUBISHI FX1S series PLC is suitable for the smallest package,
It is the preferred target for low cost users to seek powerful control over a limited range of I/0.
FX1S provides up to 30 I/O points, and can be transmitted through serial communication data,
MT models also have the ability to locate, widely used in a variety of small mechanical equipment.
