FX3GE-24MT/DS PLC
MITSUBISHI FX3GE-24MT/DS Manual And Instructions
FX3GE-24MT/DS datasheetPDF datasheet
FX3GE-24MT/DS Basic & Applied Instructions EditionPROGRAMMING MANUAL

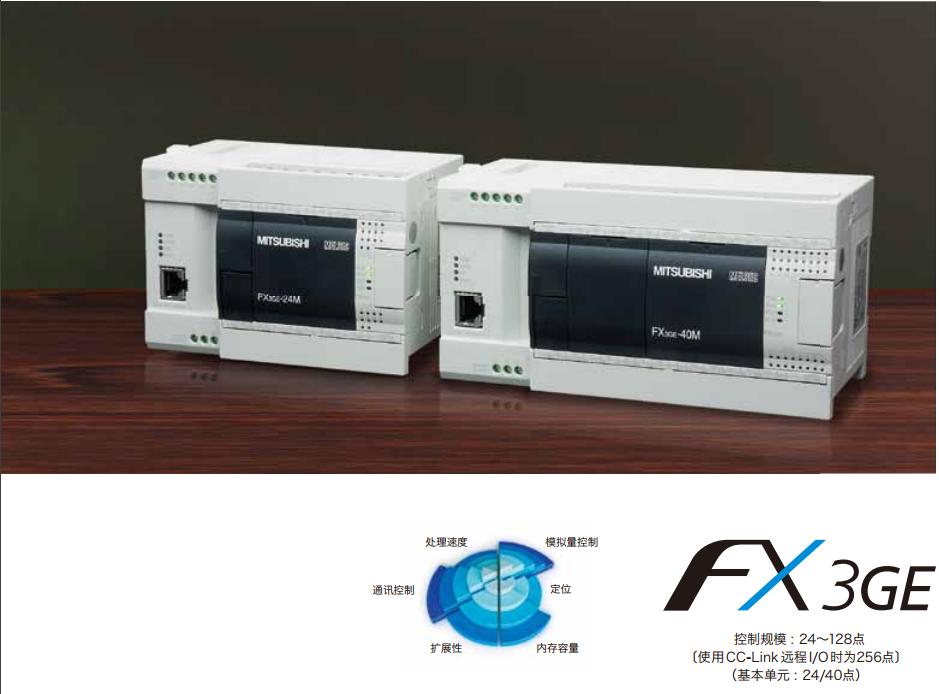

MITSUBISHI FX3GE-24MT/DS Product information and technical parameters：
Brand: MITSUBISHI
Name: PLC
Model: FX3GE-24MT/DS
Input and output points: 24 points.
Power supply: DC24V.
Input points: 14 points.
Output points: 10 points.
Output form: transistor output (drain).
Power consumption: 21W.
Weight: 0.55KG.
Outline dimension: 90x90x86mm.
FX3GE on the performance of the FX3GA increased analog input / output and Ethernet communication and other built-in features.
Applicable to a wide variety of applications.
Basic unit: 24/40 point.
Third generation standard model.
High flexibility.
Suitable for small scale control of high cost PLC.
Control points to 128 points, the use of CC-Link remote I/O can control the maximum 256 points.
A versatile PLC.
Built in CPU, power supply, input and output, analog input and output, Ethernet port, can be used immediately after the purchase.
High speed operation.
Basic instructions: 0.21 s/ instruction.
Application instruction: 0.5 s/ instruction.
Large capacity memory.
Built in program memory 32000 steps.
EEPROM memory cartridge with program transfer function.
