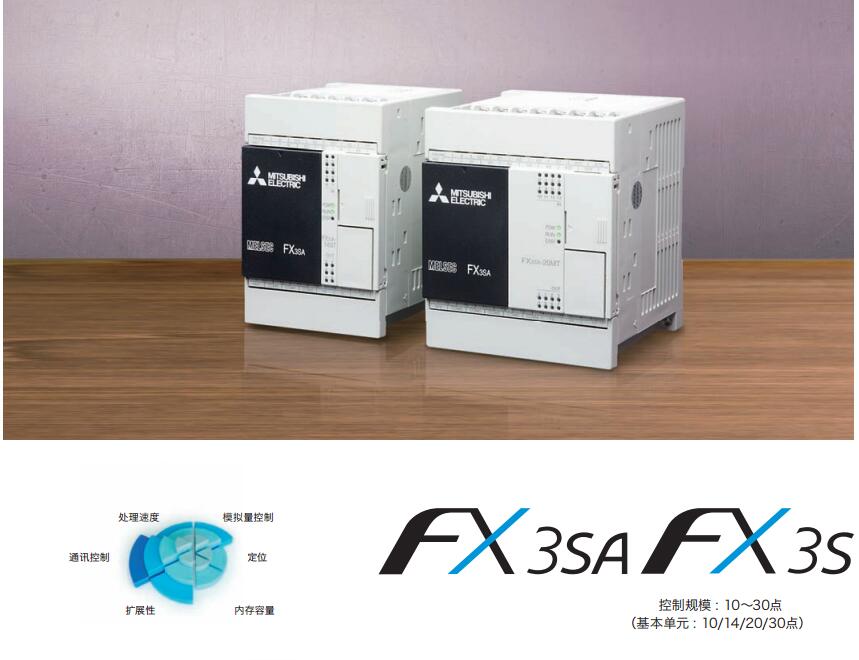

FX3S-20MT/DS PLC
MITSUBISHI FX3S-20MT/DS Manual And Instructions
FX3S-20MT/DS datasheetPDF datasheet
MITSUBISHI FX3S-20MT/DS Product information and technical parameters：
Brand: MITSUBISHI
Name: PLC
Model: FX3S-20MT/DS
Input and output points: 20 points.
Power supply: DC24V.
Input points: 12 points.
Output points: 8 points.
Output form: transistor output (drain).
Power consumption: 7W.
Weight: 0.3KG.
Outline dimension: 75x90x49mm.
Built in CPU, power supply, input and output.
Keep FX1S compact body, while adding more features.
Special adaptor and function expansion board can be installed and used FX3 series.
High speed operation.
Basic instructions: 0.21 s/ instruction
Application instruction: 0.5 s/ instruction
Large capacity memory.
Built in program memory 4000 steps.
No battery.
Auxiliary relay: 1536 points.
Timer: 138 points.
Counter: 67.
Data register: 3000.
A new application model.
FX3SA is a basic model on the basis of the basic performance of the FX1S increased the expansion of the new models.
FX3SA is suitable for all kinds of fields, such as analog quantity, Ethernet, MODBUS function, small scale equipment and so on.
Basic models suitable for small scale control.
Compact but powerful,
At the same time, the analog quantity and the communication function and so on.
...More relevant models >>>>
FX3S-20MT/DS datasheetPDF datasheet
MITSUBISHI FX3S-20MT/DS Product information and technical parameters：
Brand: MITSUBISHI
Name: PLC
Model: FX3S-20MT/DS
Input and output points: 20 points.
Power supply: DC24V.
Input points: 12 points.
Output points: 8 points.
Output form: transistor output (drain).
Power consumption: 7W.
Weight: 0.3KG.
Outline dimension: 75x90x49mm.
Built in CPU, power supply, input and output.
Keep FX1S compact body, while adding more features.
Special adaptor and function expansion board can be installed and used FX3 series.
High speed operation.
Basic instructions: 0.21 s/ instruction
Application instruction: 0.5 s/ instruction
Large capacity memory.
Built in program memory 4000 steps.
No battery.
Auxiliary relay: 1536 points.
Timer: 138 points.
Counter: 67.
Data register: 3000.
A new application model.
FX3SA is a basic model on the basis of the basic performance of the FX1S increased the expansion of the new models.
FX3SA is suitable for all kinds of fields, such as analog quantity, Ethernet, MODBUS function, small scale equipment and so on.
Basic models suitable for small scale control.
Compact but powerful,
At the same time, the analog quantity and the communication function and so on.
Total points: 60 points.
Input points: 36 points.
Output points: 24 points.
Voltage: AC220V.
Output type: transistor.
Outline dimension: 175*75*90.
FX1N series is a very powerful micro PLC,
Can be extended to up to 128 I/O points,
And can increase the special function module or the expansion board.
Communication and data link function options make FX1N in the volume, communication and special function modules and other important applications is very perfect FX3S-20MT/DS FX3S-20MT/DS Function: input / output module (internal service power supply).
Input / output points: 32 points
Input points: 16 points.
Output points: 16 points.
DC5V internal consumption current: 965mA.
DC24V internal consumption current: 250mA.
Input / output mode: DC input (drain / source) / transistor (drain) FX3S-20MT/DS.
In order to extend the input output of the device.
Also has a built-in power supply products.
The maximum number of points for the input and output is 256.
Expansion module: up to 16 units (in addition to the power expansion module)
The total number of CC-Link, AnyWireASLINK, and Bitty series of remote I/O is 512 points. Function extension board for RS-485 communication FX3S-20MT/DS.
No DC24V consumption, no occupancy of the input output (FX1S and FX1N of the host computer). Input and output points: 24 points.
Power supply: AC100-240V.
Input points: 14 points.
Output points: 10 points.
Output form: transistor output (source).
Power consumption: 32W.
Weight: 0.55KG.
Outline dimension: 90x90x86mm.
FX3GE on the performance of the FX3GA increased analog input / output and Ethernet communication and other built-in features.
Applicable to a wide variety of applications.
Basic unit: 24/40 point.
Third generation standard model.
High flexibility.
Suitable for small scale control of high cost PLC.
Control points to 128 points, the use of CC-Link remote I/O can control the maximmum 256 points FX3S-20MT/DS.
A versatile PLC.
Built in CPU, power supply, input and output, analog input and output, Ethernet port, can be used immediately after the purchase.
High speed operation.
Basic instructions: 0.21 s/ instruction.
Applicatioon instruction: 0 FX3S-20MT/DS. 5 s/ instruction.
Large capacity memory.
Built in program memory 32000 steps.
EEPROM memory cartridge with program transfer function.
Input points: 36 points.
Output points: 24 points.
Voltage: AC220V.
Output type: transistor.
Outline dimension: 175*75*90.
FX1N series is a very powerful micro PLC,
Can be extended to up to 128 I/O points,
And can increase the special function module or the expansion board.
Communication and data link function options make FX1N in the volume, communication and special function modules and other important applications is very perfect FX3S-20MT/DS FX3S-20MT/DS Function: input / output module (internal service power supply).
Input / output points: 32 points
Input points: 16 points.
Output points: 16 points.
DC5V internal consumption current: 965mA.
DC24V internal consumption current: 250mA.
Input / output mode: DC input (drain / source) / transistor (drain) FX3S-20MT/DS.
In order to extend the input output of the device.
Also has a built-in power supply products.
The maximum number of points for the input and output is 256.
Expansion module: up to 16 units (in addition to the power expansion module)
The total number of CC-Link, AnyWireASLINK, and Bitty series of remote I/O is 512 points. Function extension board for RS-485 communication FX3S-20MT/DS.
No DC24V consumption, no occupancy of the input output (FX1S and FX1N of the host computer). Input and output points: 24 points.
Power supply: AC100-240V.
Input points: 14 points.
Output points: 10 points.
Output form: transistor output (source).
Power consumption: 32W.
Weight: 0.55KG.
Outline dimension: 90x90x86mm.
FX3GE on the performance of the FX3GA increased analog input / output and Ethernet communication and other built-in features.
Applicable to a wide variety of applications.
Basic unit: 24/40 point.
Third generation standard model.
High flexibility.
Suitable for small scale control of high cost PLC.
Control points to 128 points, the use of CC-Link remote I/O can control the maximmum 256 points FX3S-20MT/DS.
A versatile PLC.
Built in CPU, power supply, input and output, analog input and output, Ethernet port, can be used immediately after the purchase.
High speed operation.
Basic instructions: 0.21 s/ instruction.
Applicatioon instruction: 0 FX3S-20MT/DS. 5 s/ instruction.
Large capacity memory.
Built in program memory 32000 steps.
EEPROM memory cartridge with program transfer function.
