FX3UC-16MT/D-P4 PLC
MITSUBISHI FX3UC-16MT/D-P4 Manual And Instructions
FX3UC-16MT/D-P4 datasheetPDF datasheet
FX3UC-16MT/D-P4 HARDWARE MANUAL
FX3UC-16MT/D-P4 Hardware EditionUSER'S MANUAL
FX3UC-16MT/D-P4 Positioning Control EditionUSER'S MANUAL
FX3UC-16MT/D-P4 Basic & Applied Instructions EditionPROGRAMMING MANUAL
FX3UC-16MT/D-P4 MODBUS Serial Communication EditionUSER'S MANUAL
MITSUBISHI FX3UC-16MT/D-P4 Product information and technical parameters：
Brand: MITSUBISHI
Name: PLC
Model: FX3UC-16MT/D-P4
Input and output points: 16 points.
Input points: 8 points.
Input specification: leakage type.
Output points: 8 points.
Output form: transistor output (drain).
Power consumption: 6W.
Weight: 0.2KG.
Outline dimension: 34x90x87mm.

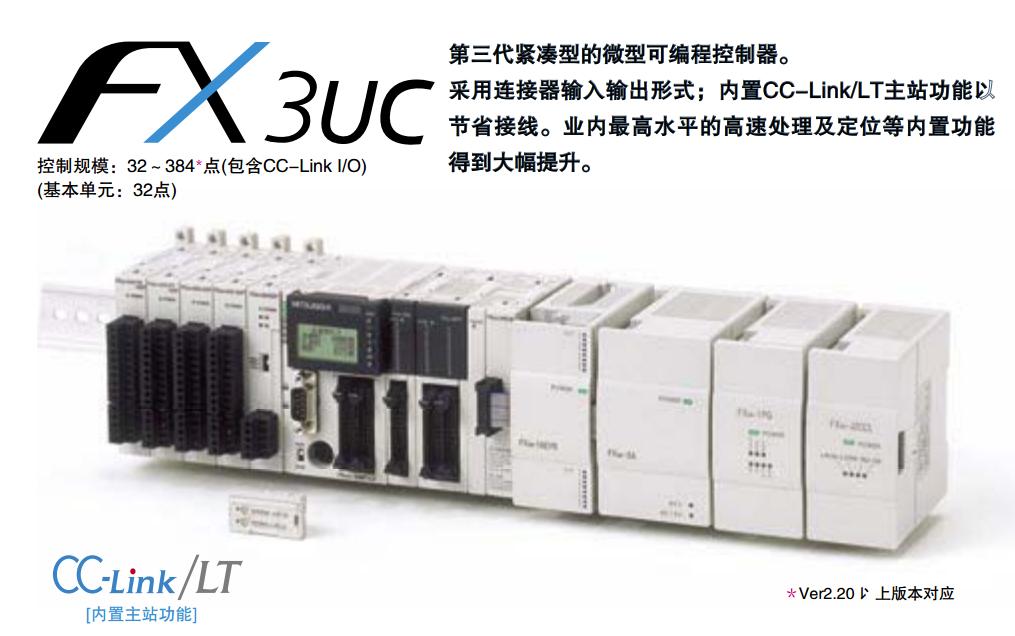

Hard and compact type third generation micro programmable controller.
Connector type input and output type provincial connection.
Greatly strengthened the industry''s highest level of high-speed processing and positioning and other built-in features.
High cost of the province space models.
FX3UC in the province of space, the province also greatly strengthened the connection of high-speed processing and positioning and other built-in features.
The host is built in DC24V power supply, the connector input and output form of the transistor output.
In addition, according to the product mix can also achieve network communications, analog control, data collection and other functions.
Third generation high function micro programmable controller.
Connector type can save space, province wiring.
Built in high speed processing and positioning.
Ultra small size, control points to 256 points.
Construction of CC-Link remote I/O 384 points.
...More relevant models >>>>
