MITSUBISHI GT1020-LWD2 Product information and technical parameters：
Brand: MITSUBISHI
Name: 3.7 Inch Touch Screen

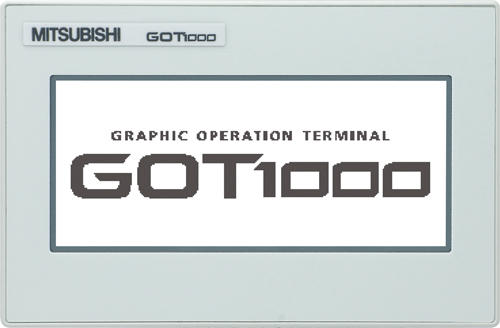

Model: GT1020-LWD2
Series introduction: set a number of basic functions in a small body model.
Screen size: 3.7 inches.
Display color: monochrome.
Mounting type: panel mounting type.
Resolution: 288 * 96.
Display device: STN monochrome.
Host frame color: white.
Power type: DC24V.
Communication interface: with built-in RS-232.
Set a number of basic functions in a compact type.
GT1055/GT1050/GT1045/GT1040:
User storage capacity: 3MB.
Device USB port.
The standard RS-422/485 and RS-232 interface.
GT1030/GT1020:
User storage capacity: 1.5MB (gt1030) /512kb (gt1020).
Three color LED backlight design, equipment status at a glance.
The standard RS-422/485 or RS-232 interface.
Touch screen, also known as touch screen, touch panel, is a kind of induction type liquid crystal display device can receive contacts and other input signals,
When touching the screen button on the screen,
The tactile feedback system on the screen can drive various connecting devices according to the pre programmed program,
Can be used to replace the mechanical button panel, and by the liquid crystal display screen to create the image of the effect of birth.

Cable length: 3m.
For connection between FXCPU (MINI-DIN8 pin connector) and GOT.
Connection between FXCPU communication function extension board (MINI-DIN8 pin connector) and GOT.
Applicable models: GT16, GT15, GT11, HandyGOT, GT10, GT27, GT25, GT23,, GT21. Cable length: 3.0m.
For the connection between QnAS/AnSCPU/ motion controller GOT (A Series) and CPU GT1020-LWD2.
Applicable models: GT16, GT15, GT11 GT1020-LWD2 Optional features of memory card (A/FX compatible).
4MB extended memory.
Applicable models: A985 (-V) /975/970/A960GOT (-B) /A956WGOT. For GT1675-VNB / /GT1672-VNB.
Applicable model: GT16. "A series of high performance models that are widely used in network or single machine work environments.
Screen size: 5 GT1020-LWD2. 7 inches.
Display color: monochrome.
Mounting type: panel mounting type.
Resolution: QVGA (320 x 240).
Display device: STN monochrome.
Host frame color: black.
Power type: DC24V.
Communication interface: with built-in RS-422.
Ideal model for high performance in a network or independent operation environment.
User storage capacity: 9MB (GT15__-VNB_:5MB).
Device USB port.
Standard RS-232 interface GT1020-LWD2.
Support video /RGB unit.
If the capacitive touch screen is in the middle of the operation, the display resolution or display mode of the touch screen is changed again,
Or the refresh rate of the touch screen controller is adjusted by itself, and the cursor and the touch point can not be felt when the cursor is not corresponding to the touch point,
Must be re calibrated to the touch screen system.
In order to ensure the normal operation of the touch screen system, in addition to ensure the proper installation of the system software,
Must also remember that in a host do not instaall two or more than two kinds of touch screen driver,
This will cause the system to run in conflict, so that the touch screen system can not be used properly GT1020-LWD2. Protective film for 5.7 inch screen.
Transparent (frame: white), 5.
Applicablle model: GT105 GT1020-LWD2. Video display function: NTSC / PAL input system, 4CH.
RGB display function: analog RGB input system, 1CH.
Applicable model: A985GOT-V.
