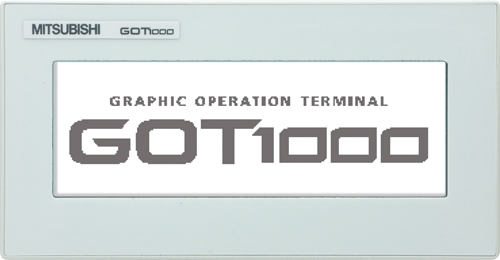

GT1030-LWL 4.5 Inch Touch Screen

MITSUBISHI 4.5 Inch Touch ScreenGT1030-LWL

GT1030-LWL Introduce | GT1030-LWL Catalog / Manual / Instructions / Software download

MITSUBISHI GT1030-LWL Manual And Instructions
GT1030-LWL datasheetPDF datasheet
GT1030-LWL MES Interface Function Manual
GT1030-LWL Gateway Functions Manual
GT1030-LWL Extended/Option Functions Manual
GT1030-LWL Mitsubishi plc ConnectionsConnection Manual
GT1030-LWL Connection Manual

MITSUBISHI GT1030-LWL Product information and technical parameters：
Brand: MITSUBISHI
Name: 4.5 Inch Touch Screen
Model: GT1030-LWL
Series introduction: set a number of basic functions in a small body model.
Screen size: 4.5 inches.
Display color: monochrome.
Mounting type: panel mounting type.
Resolution: 288 * 96.
Display device: STN monochrome.
Host frame color: white.
Power type: DC5V.
Communication interface: with built-in RS-422.
Set a number of basic functions in a compact type.
GT1055/GT1050/GT1045/GT1040:
User storage capacity: 3MB.
Device USB port.
The standard RS-422/485 and RS-232 interface.
GT1030/GT1020:
User storage capacity: 1.5MB (gt1030) /512kb (gt1020).
Three color LED backlight design, equipment status at a glance.
The standard RS-422/485 or RS-232 interface.
Touch screen, also known as touch screen, touch panel, is a kind of induction type liquid crystal display device can receive contacts and other input signals,
When touching the screen button on the screen,
The tactile feedback system on the screen can drive various connecting devices according to the pre programmed program,
Can be used to replace the mechanical button panel, and by the liquid crystal display screen to create the image of the effect of birth.

With 4.3 inch widescreen.
Surface treatment: anti reflective film.
Protective film color: No.
USB protective cover parts: no openings.
Set number: 5.
Applicable model: GT21. Connecting cable for handheld RH GOT and PLC.
Cable length: 6 meters.
Application: RS-422 connection and RS-232C connection. Cable length: 3m GT1030-LWL.
The connection between the CC-LINK interface unit and the smart GOT.
Applicable model: HandyGOT GT1030-LWL USB interface protection cover on the front panel of the host computer (for replacement).
For 15 inches /12.1 inches /10.4 inches /8.4 inches.
Applicable model: GT15. Function: high performance and low price in the middle end model.
Picture size: 12.1 inches.
Resolution: SVGA.
Display: TFT color GT1030-LWL.
Panel color: black.
Power type: AC100~240V.
Middle end model of high performance and low price.
GT25 standard supports SD memory card and standard equipped with Ethernet, RS-232, RS-422/485, host/device USB interface.
Even in the log, script, alarm, soft component data transmission, such as high load processing period, but also to achieve smooth operation of the screen.
Connect GOT front USB interface and computer,
Can be through the FA, the GOT machine programming, start and adjust the operation,
Save the trouble of opening the control cabinet and changing the cable GT1030-LWL.
1, USB interface: device USB machine (Mini-B USB)
Can connect to the computer to transfer data.
2, USB interface: host USB (USB-A)
USB data can be transmitted through the USB memory or read log data, such as the GOT data, but also can be connected to the use of the mouse, keyboard.
3, the extension of the interface
Communication module and optionaal module can be installed GT1030-LWL.
4, Ethernet interface
Up to 4 different manufacturers can be connected at the same time
FA machine.
5, RS-232 interface
Can connect all kinds of FA machine, bar code reader, serial printer.
6, RS-422/485 interfface
Can be connected to a variety of FA machines, bar code reader GT1030-LWL.
7, SD memory card slot
Can save alarm and log data, such as a large number of data.
