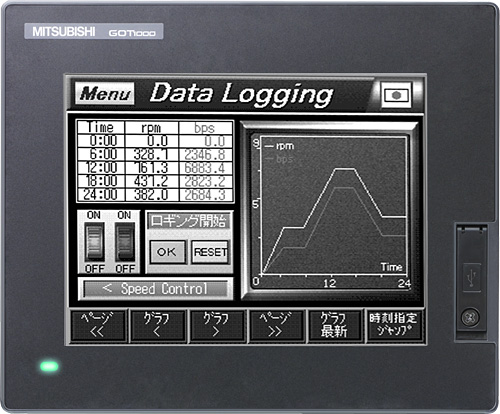

GT1455-QTBDE 5.7 Inch Touch Screen

MITSUBISHI GT1455-QTBDE Manual And Instructions
GT1455-QTBDE datasheetPDF datasheet
GT1455-QTBDE MES Interface Function Manual
GT1455-QTBDE Gateway Functions Manual
GT1455-QTBDE Extended/Option Functions Manual
GT1455-QTBDE Mitsubishi plc ConnectionsConnection Manual
GT1455-QTBDE Connection Manual

MITSUBISHI GT1455-QTBDE Product information and technical parameters:
Brand: MITSUBISHI
Name: 5.7 Inch Touch Screen
Model: GT1455-QTBDE
Series introduction: with a variety of first type functions and communication interface standard model.
Screen size: 5.7 inches.
Display color: 256 color or more color.
Mounting type: panel mounting type.
Resolution: QVGA (320 x 240).
Display device: TFT color (high brightness, wide viewing angle).
Host frame color: black.
Power type: DC24V.
With a built-in Ethernet communication interface.
Standard model with various pre - and communication interface.
User storage capacity: 9MB.
Device USB interface.
Standard Ethernet, RS-422/485 and RS-232 interface.
The standard SD card interface.
