MITSUBISHI GT2508-VTBA-GF Product information and technical parameters：
Brand: MITSUBISHI

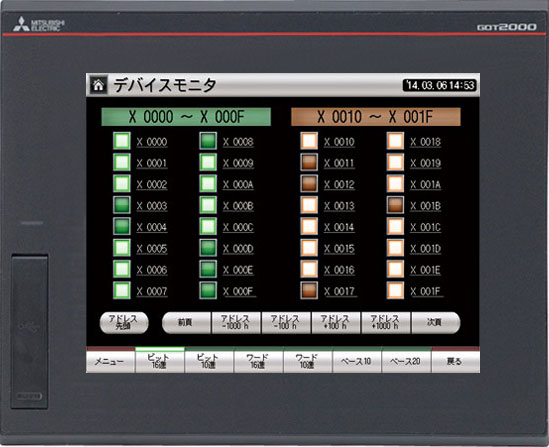

Name: 8.4 Inch Touch Screen
Model: GT2508-VTBA-GF
Function: high performance and low price in the middle end model.
Picture size: 8.4 inches.
Resolution: VGA.
Display: TFT color.
Panel color: black.
Power type: AC100~240V.
Communication interface: CC-Link IE network communication module set.
Middle end model of high performance and low price.
GT25 standard supports SD memory card and standard equipped with Ethernet, RS-232, RS-422/485, host/device USB interface.
Even in the log, script, alarm, soft component data transmission, such as high load processing period, but also to achieve smooth operation of the screen.
Connect GOT front USB interface and computer,
Can be through the FA, the GOT machine programming, start and adjust the operation,
Save the trouble of opening the control cabinet and changing the cable.
1, USB interface: device USB machine (Mini-B USB)
Can connect to the computer to transfer data.
2, USB interface: host USB (USB-A)
USB data can be transmitted through the USB memory or read log data, such as the GOT data, but also can be connected to the use of the mouse, keyboard.
3, the extension of the interface
Communication module and optional module can be installed.
4, Ethernet interface
Up to 4 different manufacturers can be connected at the same time
FA machine.
5, RS-232 interface
Can connect all kinds of FA machine, bar code reader, serial printer.
6, RS-422/485 interface
Can be connected to a variety of FA machines, bar code reader.
7, SD memory card slot
Can save alarm and log data, such as a large number of data.

Series Name: A953GOT.
Size: 6 inches.
Resolution: 320 * 240.
Display device: STN monochrome display.
Display color: monochrome (white and black).
Power supply: DC24V.
The built-in RS-232 communication interface.
Memory card: 3M.
Design any machine interface, generally have to consider the system response time, user assistance mechanism, error information processing and command mode four aspects GT2508-VTBA-GF GT2508-VTBA-GF
System response time is too long to be the most users in the interactive system,
In addition to the absolute length of the response time, the user is also very concerned about the difference in response to different commands in response time,
If too wide users will be difficult to accept; user assistance mechanism should be integrated,
Avoid overlay systems that cause users to turn to a guide and have to browse a large number of irrelevant information;
Error and warning information must be selected in terms of user''s clarity and meaning,
At the same time, it should be as far as possible to provide some suggestions on the recovery of errors GT2508-VTBA-GF.
In addition, when the error message is displayed, the effect is better if it is supplemented by the auditory (Bell) and visual (special color) stimulus;
Command mode is the best menu and keyboard commands, for the user to choose GT2508-VTBA-GF. Series introduction: with a variety of integrated functions and communication interface, and a larger volume of the basic model.
Screen size: 8.4 inches.
Display color: 256 color or more color.
Mounting type: panel mounting type.
Resolution: VGA (640 x 480).
Display device: TFT color.
Host frame color: black.
Power type: DC24V.
Communication interface: with built-in RS-422.
With a variety of integrated functions and communication interface and a larger volume of the basic model.
User storage capacity: 6MB.
Device USB interface.
Standard Ethernet, RS-422/485 and RS-232 interface.
Analog touch panel.
From the technical principle to distinguish the touch screen, can be divided into five basic types: vector pressure sensor touch screen, resistive touch screen, capacitive touch screen technology, infrared touch screen technology, surface acoustic wave touch screen technology.
Vector pressure sensing technology touch screen has been withdrawn from the stage of history;
Infrared touch screen technology and low price, but the frame is fragile, easy to produce light interference and surface distortion;
The design of capacitive touch screen is reasonable, but it is difficult to solve the problem of image distortion;
The touch screen positioning reesistor technology is accurate, but its price is high, and fear of vulnerability scratch;
The surface acoustic wave touch screen solves various defects of the touch screen in the past,
Clear and not easy to be damaged, suitable for vaarious occasions,
The disadvantage is that the screen surface if there is water droplets and dust will make the touch screen become slow, or even work GT2508-VTBA-GF GT2508-VTBA-GF.
