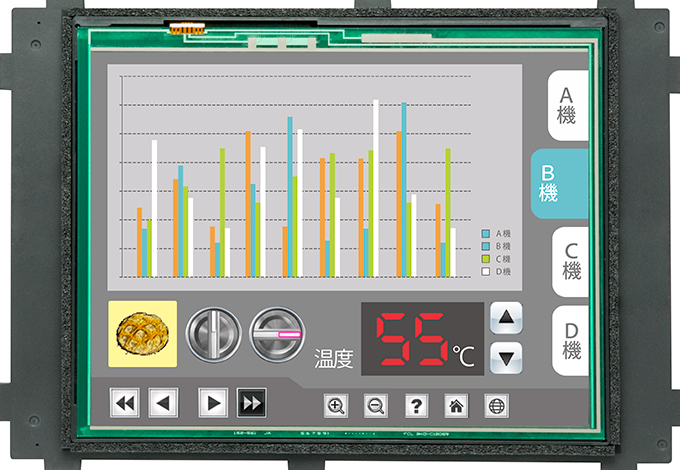

GT2510F-VTND 10.4 inch touch screen
MITSUBISHI GT2510F-VTND Manual And Instructions
GT2510F-VTND datasheetPDF datasheet
GT2510F-VTND MES Interface Function Manual
GT2510F-VTND Microcomputers, MODBUS/Fieldbus Products, PeripheralsConnection Manual
GT2510F-VTND Non-Mitsubishi Products 2Connection Manual
GT2510F-VTND Non-Mitsubishi Products 1Connection Manual
GT2510F-VTND Mitsubishi ProductsConnection Manual
GT2510F-VTND MonitorUser's Manual
GT2510F-VTND UtilityUser's Manual
GT2510F-VTND HardwareUser's Manual
GT2510F-VTND SAFETY PRECAUTIONS
MITSUBISHI GT2510F-VTND Product information and technical parameters：
Brand: MITSUBISHI
Name: 10.4 inch touch screen
Model: GT2510F-VTND
Function: high performance and low price in the middle end model.
Picture size: 10.4 inches.
Resolution: VGA.
Display: TFT color.
Open frame type.
Panel color: white.
Power type: DC24V.
Middle end model of high performance and low price.
GT25 standard supports SD memory card and standard equipped with Ethernet, RS-232, RS-422/485, host/device USB interface.
Even in the log, script, alarm, soft component data transmission, such as high load processing period, but also to achieve smooth operation of the screen.
Connect GOT front USB interface and computer,
Can be through the FA, the GOT machine programming, start and adjust the operation,
Save the trouble of opening the control cabinet and changing the cable.
1, USB interface: device USB machine (Mini-B USB)
Can connect to the computer to transfer data.
2, USB interface: host USB (USB-A)
USB data can be transmitted through the USB memory or read log data, such as the GOT data, but also can be connected to the use of the mouse, keyboard.
3, the extension of the interface
Communication module and optional module can be installed.
4, Ethernet interface
Up to 4 different manufacturers can be connected at the same time
FA machine.
5, RS-232 interface
Can connect all kinds of FA machine, bar code reader, serial printer.
6, RS-422/485 interface
Can be connected to a variety of FA machines, bar code reader.
7, SD memory card slot
Can save alarm and log data, such as a large number of data.
