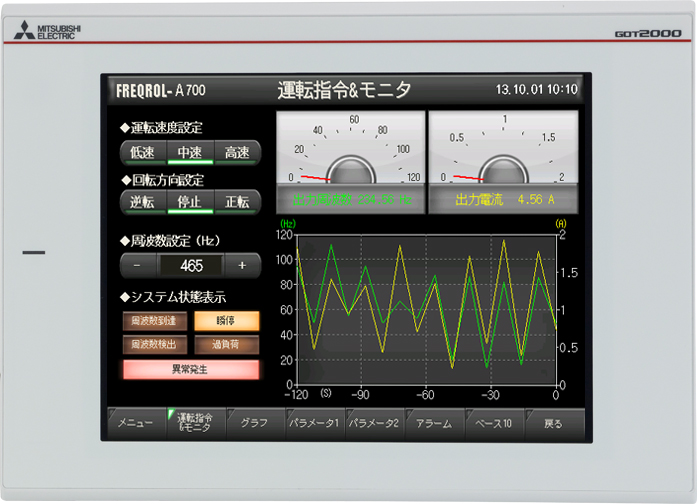

MITSUBISHI 10.4 inch touch screenGT2710-VTWD-GF

GT2710-VTWD-GF Introduce | GT2710-VTWD-GF Catalog / Manual / Instructions / Software download

MITSUBISHI GT2710-VTWD-GF Manual And Instructions
GT2710-VTWD-GF datasheetPDF datasheet
GT2710-VTWD-GF MES Interface Function Manual
GT2710-VTWD-GF Microcomputers, MODBUS/Fieldbus Products, PeripheralsConnection Manual
GT2710-VTWD-GF Non-Mitsubishi Products 2Connection Manual
GT2710-VTWD-GF Non-Mitsubishi Products 1Connection Manual
GT2710-VTWD-GF Mitsubishi ProductsConnection Manual
GT2710-VTWD-GF MonitorUser's Manual
GT2710-VTWD-GF UtilityUser's Manual
GT2710-VTWD-GF HardwareUser's Manual

MITSUBISHI GT2710-VTWD-GF Product information and technical parameters：
Brand: MITSUBISHI
Name: 10.4 inch touch screen
Model: GT2710-VTWD-GF
Function: high performance and low price in the middle end model.
Picture size: 10.4 inches.
Resolution: VGA.
Display: TFT color.
Panel color: white.
Power type: DC24V.
Communication interface: CC-Link IE network communication module set.
The highest level model with multi touch and gesture features.
Specification rich, design at ease.
GT27 standard supports SD memory card and standard equipped with Ethernet, RS-232, RS-422/485, host/device USB interface.
Even in the log, script, alarm, soft component data transmission, such as high load processing period, but also to achieve smooth operation of the screen.
In addition, also supports video, animation playback, video input and RGB input and output, can use all the features of GOT2000.
Can be programmed CPU and other procedures, parameters, such as data storage (backup) to the SD GOT memory card, USB memory.
When the programmable controller fails, batch write back (recovery) program.
1, the human body sensor
People will be able to automatically detect and display the picture.
2, USB interface: device USB (Mini-B USB)
Can connect to the computer to transfer data.
3, USB interface: host USB (USB-A)
GOT data can be transmitted through the USB memory or read log data and other data,
Can also be connected to the USB mouse, keyboard use.
4, the extension of the interface
Communication module and optional module can be installed.
5, Ethernet interface
Up to 4 different manufacturers can be connected to the FA machine.
6, RS-232 interface
Can connect all kinds of FA machine, bar code reader, serial printer.
7, RS-422/485 interface
Can be connected to a variety of FA machines, bar code reader.
8, SD memory card slot
Can save alarm and log data, such as a large number of data.

Series introduction: set a number of basic functions in a small body model.
Screen size: 3.7 inches.
Display color: monochrome.
Mounting type: panel mounting type.
Resolution: 288 * 96.
Display device: STN monochrome.
Host frame color: white.
Power type: DC24V.
GT10 backlight: white backlight.
Communication interface: with built-in RS-232 GT2710-VTWD-GF.
Set a number of basic functions in a compact type GT2710-VTWD-GF
GT1055/GT1050/GT1045/GT1040:
User storage capacity: 3MB.
Device USB port.
The standard RS-422/485 and RS-232 interface.
GT1030/GT1020:
User storage capacity: 1.5MB (gt1030) /512kb (gt1020).
Three color LED backlight design, equipment status at a glance.
The standard RS-422/485 or RS-232 interface.
Touch screen, also known as touch screen, touch panel, is a kind of induction type liquid crystal display device can receive contacts and other input signals,
When touching the screen button on the screen,
The tactile feedback system on the screen can drive various connecting devices according to the pre programmed program,
Can be used to replace the mechanical button panel, and by the liquid crystal display screen to create the image of the effect of birth GT2710-VTWD-GF GT2710-VTWD-GF. 10.4 inches.
Surface treatment: transparent.
Protective film color: No.
USB protection cover parts: there is an opening.
Set number: 5.
Applicable models: GT27, GT25. Cable length: 3m.
For connection between FXCPU (MINI-DIN8 pin connector) and GOT.
Connection between FXCPU communication function extension board (MINI-DIN8 pin connector) and GOT.
Applicable models: GT10, GT21. Cable length: 0.2m.
For bar code reader (D-SUB9 pin, header) and GOT (MINI-DIN6 pin, male head) RS-232 connection between.
Applicable models: GT11, GT21. Protective film for 8.4 inch screen.
Transparent, 5.
Applicable model: GT15. Series Name: hand held F940GOT.
System screen display language: english.
Display: 5.7 inches, can operate in the palm of the GOT.
Display color: monochrome.
Display device: LCD STN.
Resolution: 320 * 240.
Installation type: panel mounting.
The built-in communication port: RS-422 (1ch).
Power supply voltage: DC24V.
GOT-F900 series can be easily applied to a variety of different applications.
3 built-in communication channelss GT2710-VTWD-GF.
Screen area.
Through the split screen configuration, you can reduce the operating time.
The image can be divided into two or three parts to display.
According to the user''s application example, the menu screen or the operation of the button sometimes on the screen will often be used to GT2710-VTWD-GF.
As a result, it is very time-consuming and inefficient to make a similar picture every time.
