>> HC-SFS203 Medium inertia power motor
HC-SFS203 Medium inertia power motor
MITSUBISHI HC-SFS203 Manual And Instructions
HC-SFS203 datasheetPDF datasheet

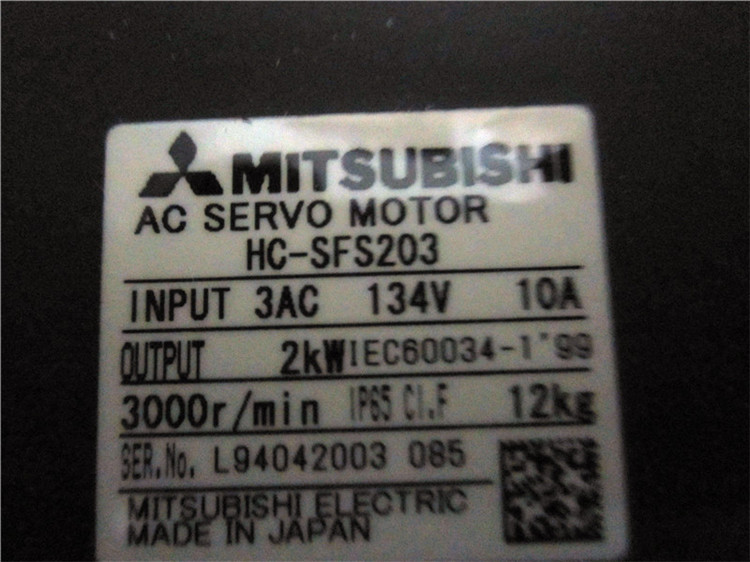

MITSUBISHI HC-SFS203 Product information and technical parameters：
Brand: MITSUBISHI
Name: Medium inertia power motor
Model: HC-SFS203
Motor series: medium inertia, medium power.
Rated output power: 2.0kw.
Rated speed: 3000r/min.
Whether to take the brake: No.
Shaft end: Standard (straight).
Protection level: IP65 (IP67).
Features: medium inertia from low speed to high speed three modes for selection, suitable for different applications.
Application examples: transmission machinery, robots, X-Y working platform.
High resolution encoder 131072p/rev (17 bit).
The encoder with high resolution ensures excellent performance and stability at low speed.
All motor dimensions are the same as before and all are compatible with the wiring.
