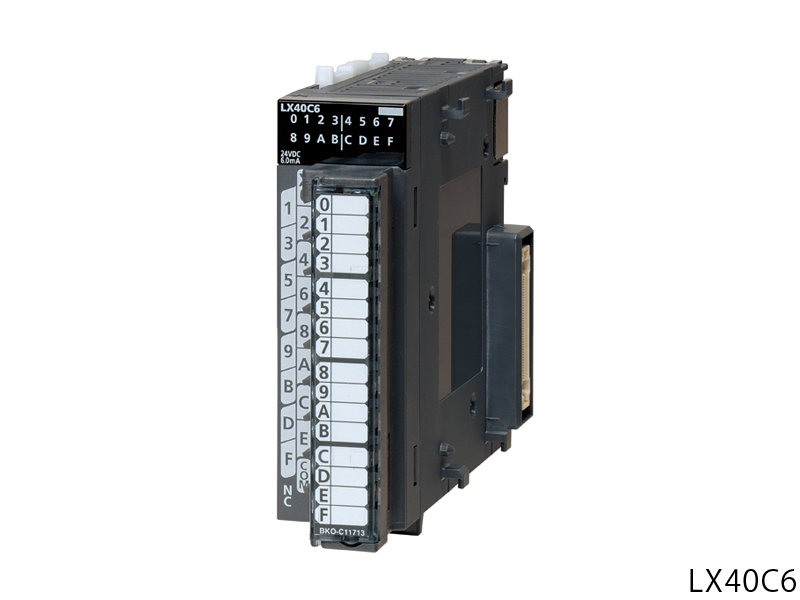

LX40C6-CM DC input module
MITSUBISHI LX40C6-CM Manual And Instructions
LX40C6-CM datasheetPDF datasheet
MITSUBISHI LX40C6-CM Product information and technical parameters：
Brand: MITSUBISHI
Name: DC input module
Model: LX40C6-CM
Input points: 16 points.
Rated input voltage: DC24V.
Common way: 16 point / public end.
Input / output occupied points: 16 points (I/O distribution: 16 points).
External wiring connection: 18 point terminal.
The input and output module is also called control module, which can output signal when there is control requirement,
Or provide a switch signal to the controlled device,
At the same time, the feedback signal of the equipment can be received to report to the host computer,
Is an important part of the fire alarm linkage system,
The input and output modules in the market can provide a pair of passive normally open / normally closed contacts,
For controlling the controlled equipment, the module of the part can be set by the parameters,
Set to active output, corresponding to the two input and output modules, multiple input and output modules, and so on.
