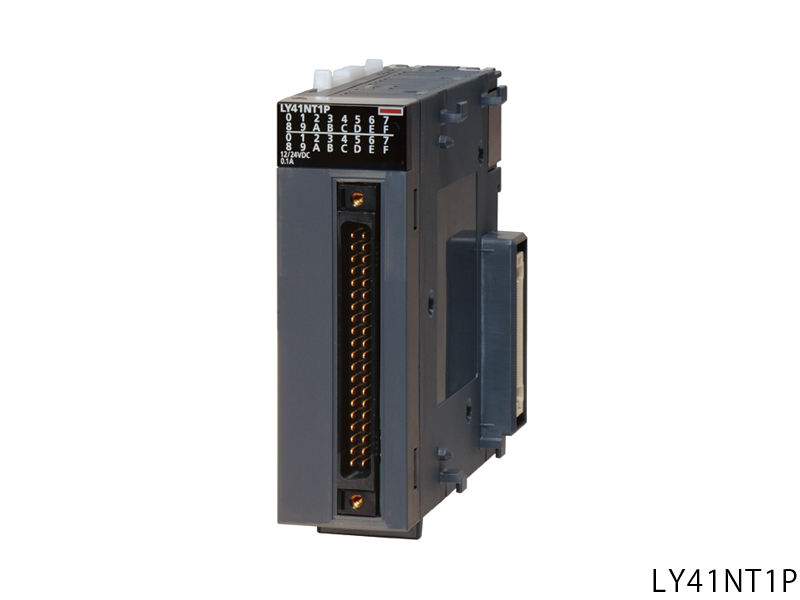

LY41NT1P-CM Transistor output module (drain type)
MITSUBISHI LY41NT1P-CM Manual And Instructions
LY41NT1P-CM datasheetPDF datasheet
MITSUBISHI LY41NT1P-CM Product information and technical parameters：
Brand: MITSUBISHI
Name: Transistor output module (drain type)
Model: LY41NT1P-CM
Output points: 32 points.
Output type: leakage type.
Rated output voltage: DC12 ~ 24V.
Max load current: 0.1A/1 point.
Protection function: have.
Common way: 32 point / public end.
Input / output occupied points: 32 points (I/O distribution: output 32 points).
External wiring connection mode: 40 pin connector.
The switch input and output module is a device which can collect the input / output of the switch signal,
Digital I/O modules are often called.
The switch signal is collected to the computer or the computer to send the relevant instructions through the RS-485 bus to control the switch of the switch,
Can also be carried out through the RS-485 bus communication,
Remote control switch.
Communication protocol is a standard Modbus protocol or custom protocol.
