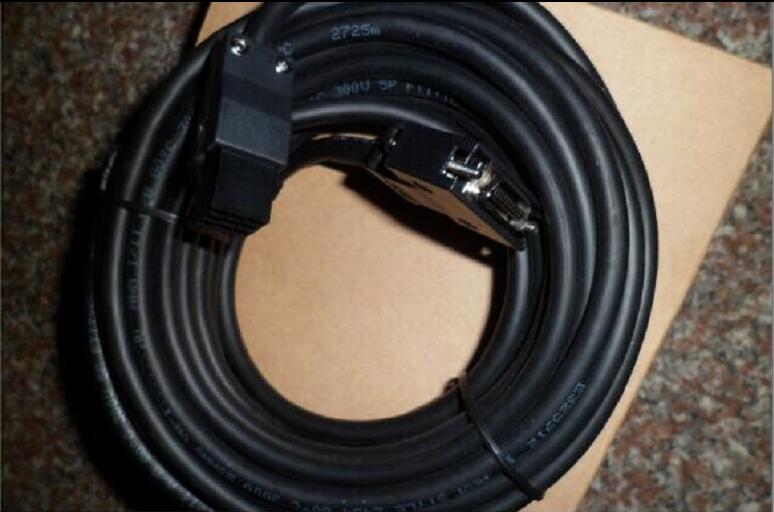

MR-ECN3 Connector kit

Joint kit for electromagnetic brake; used for.
HF-SPseries.
HF-JP53B; 73B; 103B; 153B; 203B;
353B; 503B; 703B; 903B; 534B;
734B; 1034B; 1534B; 2034B;
3534B; 5034B; 7034B; 9034BMotor series: medium inertia, medium power.
Rated output power: 2.0kw.
Rated speed: 2000r/min.
Whether to bring the brakes: with MR-ECN3.
Shaft end: Standard (straight).
Power supply: 400V type.
Protection level: IP65 (IP67) MR-ECN3
Features: medium inertia from low speed to high speed three modes for selection, suitable for different applications.
Application examples: transmission machinery, robots, X-Y working platform.
High resolution encoder 131072p/rev (17 bit).
The encoder with high resolution ensures excellent performance and stability at low speed MR-ECN3.
All motor dimensions are the same as before and all are compatible with the wiring. Servo motor series: ultra low inertia, small capacity.
Rated output: 0.05kw.
Rated speed: 3000r/min.
Electromagnetic brake: incidental.
Power supply: 200V.
The rated speed is 3000r/min, the maximum speed is 6000r/min.
The maximum torque of 350% of the rated torque, high torque in the field of high rotation, only to support the HG-KR series products MR-ECN3.
Built in absolute position encoder with high resolution.
Standard high resolution absolute position encoder (4194304p/rev (22bit)).
To achieve a higher accuracy of the positioning function.
Improve the environmental performance of HG-KR, HG-MR, HG-RR, HG-UR series of products using IP65. MITSUBISHI motor universal AC servo amplifier MELSERVO-J3 series.
Rated output: 22.0kw.
Interface type: SSCNET type III fiber communication.
Power specification: three phase AC200V.
High speed serial communication between the SSCNET and the servo amplifier by using the fastest up to 0.44ms communication cycle,
A fully synchronous control system can be constructed.
It is only necessary to insert the special optical fiber into the joint to form SSCNET III network, which greatly reduces the wiring work and reduces the possibility of false wiring.
Due to the adoption of the optical fiber coommunication, the anti noise ability can be greatly improved and the long distance wiring of 50 meters (maximum 800 meters x 16 axes) can be realized MR-ECN3.
A servo amplifier to meet the full closed loop control function MR-J3-B-RJ006.
Suitable foor mechanical servo optimization and adjustment!
More advanced optimization adjustment function and control function to maximize mechanical properties MR-ECN3.
