MITSUBISHI motor universal AC servo amplifier MELSERVO-J3 series.
Rated output: 3.5kw.
Interface type: SSCNET type III fiber communication.
Power specification: three phase AC200V.
High speed serial communication between the SSCNET and the servo amplifier by using the fastest up to 0.44ms communication cycle,
A fully synchronous control system can be constructed.
It is only necessary to insert the special optical fiber into the joint to form SSCNET III network, which greatly reduces the wiring work and reduces the possibility of false wiring.
Due to the adoption of the optical fiber communication, the anti noise ability can be greatly improved and the long distance wiring of 50 meters (maximum 800 meters x 16 axes) can be realized.
A servo amplifier to meet the full closed loop control function MR-J3-B-RJ006.
More advanced optimization adjustment function and control function to maximize mechanical properties.
MITSUBISHI motor universal AC servo amplifier MELSERVO-J3 series.
Rated output: 2.0kw.
Interface type: SSCNET type III fiber communication.
Special specification: suitable for linear servo motor.
Power specification: three phase AC200V.
More advanced real-time automatic tuning by setting response values,
Including the position gain and the gain of speed, all the gain can be adjusted automatically MR-J3-350B

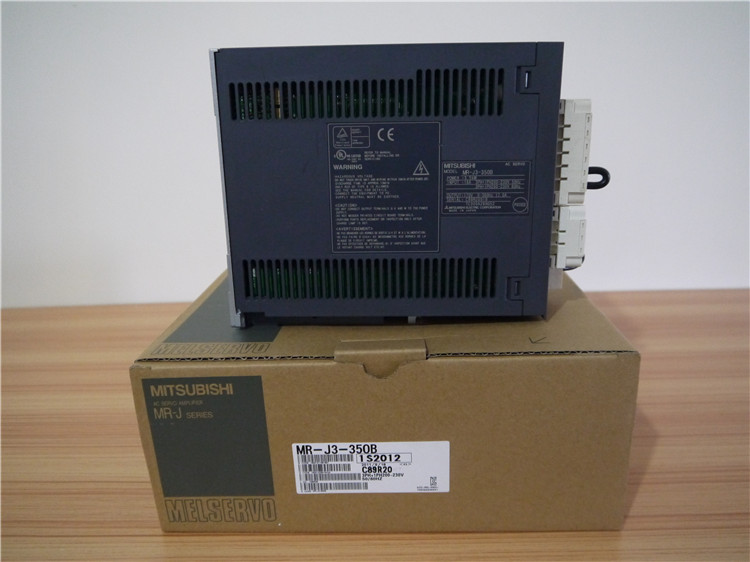

MR-J3-350B
32 segment response level can be set.
Advanced vibration suppression control.
An optimal vibration control filter value is automatically set by the automatic tuning function to effectively suppress the vibration of the 100Hz frequency that occurs when the driving part stops.
The automatic tuning function can effectively restrain the vibration of the end of the mechanical arm and reduce the residual vibration in the machine MR-J3-350B. Motor series: medium inertia, medium capacity.
Using a serial absolute / incremental encoder.
Rated output power: 5.0kw.
Rated speed: 2000rpm.
With a brake band.
Shaft end: straight shaft.
The rotor of AC servo motor is usually made of squirrel cage, but in order to make the servo motor has a wide range of speed regulation, linear mechanical properties,
Without the "rotation" phenomenon and the performance of the fast response, it is compared with the ordinary motor,
The two characteristics of rotor resistance and moment of inertia should be provided MR-J3-350B.
At present, there are two kinds of rotor structure, one is the squirrel cage rotor, which is made of conductive material with high resistivity,
In order to reduce the moment of inertia of the rotor, the rotor is slender.Type: general purpose AC servo amplifier MR-E series.
Rated output: 0.4kw.
Interface type: general purpose pulse interface.
KH003 special mark for Super MR-E.
High performance and easy to operate, reduce work load.
Enhanced system cost performance.
High performannce, high precision positioning (servo motor encoder resolution: 131072) MR-J3-350B.
High response.
Suppression of vibration by adaptive vibration suppression control.
Using personal computer and servo setup software to optimize tuning.
Has 2 types of interfaces:
Position control and speed control with pulse train interface MR-J3-350B.
The analog input interface is used for speed control and torque control.
