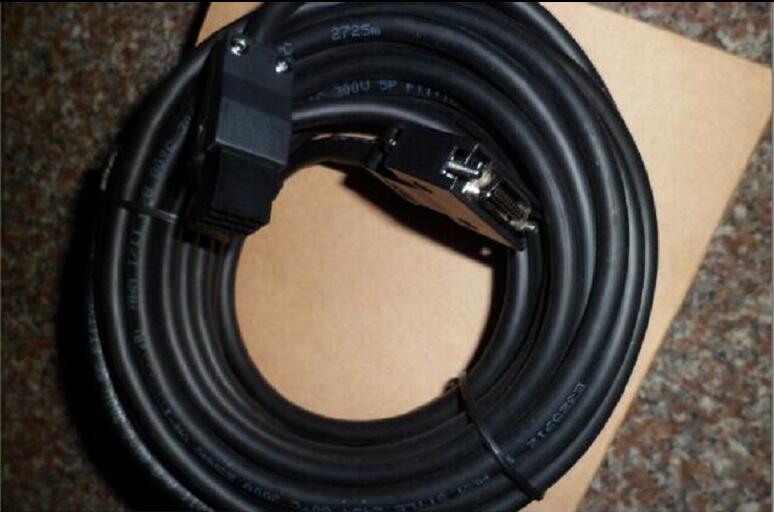

MR-J3ENSCBL30M-L Encoder cable

MITSUBISHI general purpose AC servo amplifier MELSERVO-J2-Super series.
Rated output: 0.4kw.
Built in positioning function.
Voltage: single phase AC100V.
Compatible with "MR-J2S- CP-S084" - servo amplifier and interface unit "MR-J2S-TO1" positioning by CC-Link
Simply setting the point table.
AC servo can be used as the driving source of the field network MR-J3ENSCBL30M-L.
Using servo amplifier built-in positioning function, position data and speed data, you can set the CC-Link MR-J3ENSCBL30M-L
Start, stop and display can also be transmitted through the CC-Link.
Serial communication reduces wiring.
AC servo distributed control system can be easily constructed.Motor series: ultra low inertia, low power.
Rated output power: 0 MR-J3ENSCBL30M-L. 2kw.
Rated speed: 3000r/min.
Whether to bring the brakes: with.
Shaft end: Standard (straight).
Protection level: IP55 does not include the shaft part and the connector.
Features: ultra low inertia is suitable for high frequency operation.
Application examples: the insertion device, the assembly machine. Motor series: low inertia, medium capacity.
Rated output power: 15.0kw.
Rated speed: 1000rpm MR-J3ENSCBL30M-L.
With the brake: without.
Shaft end: straight shaft.
The rotor of the servo motor is a permanent magnet, which is controlled by the U/V/W,
The rotor rotates under the action of the magnetic field, and the encoder feedback signal of the motor is given to the driver,
According to the feedback value and the target value, the driver adjusts the rotation angle of the rotor.
Accuracy of the servo motor depends on the accuracy of the encoder (number of lines). Servo motor series: low inertia, medium / high power.
Rated output: 7.0kw.
Rated speed: 3000r/min.
Electromagnetic brake: No.
Shaft end specification: Standard (straight axis).
Features: low inertia for high speed / acceleration and deceleration operation occasions.
IP level: IP67.
Application example:
1, food processing machinery.
2, printing machine.
3, injection molding machine (11KW, 15KW).
4, large press machine (11KW, 15KW).
The protection level of the HF-SP/HF-JP series servo motor is IP67 (except the shaft part).
Low inertia of the power servo motor (0.5kW ~ 9kW), the maximum speed: 6000r/min (rated speed: 3000r/min),
Suitable for high frequency positioning and acceleration / deceleration operations, especially for food processing machines and printing machines.
Low inertia, high power, no cooling fan servo motor (11kW and 15kW), maximum speed: 3000r/min (rated speed: 1500r/min).
The motor structure is more compact due to the adoption of the non cooling fan design, and the connection is reduced by using the power source connector MR-J3ENSCBL30M-L.
(compared with the HF-LP series servo motor with the same power, the volume is reduced by about 46%, and the weight is reduced by about 34%,
Suitable for high frequency positioning annd acceleration / deceleration operations, especially for injection molding machines and large presses MR-J3ENSCBL30M-L.
HF-JP703 (4) /903 (4) maximum speed: 5000r/min.
