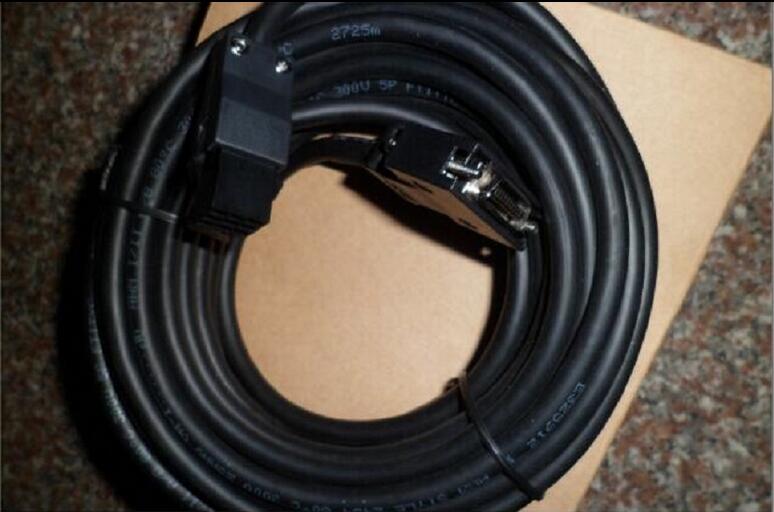

MR-JHSCBL5M-H Encoder cable

Motor series: low inertia, medium power.
Rated output power: 15.0kw.
Rated speed: 1500r/min.
Whether to bring the brakes: with.
Shaft end: Standard (straight).
Protection level: IP65 (IP67).
Features: low inertia from low speed to high speed, three modes can be selected, suitable for different application range MR-JHSCBL5M-H. As a standard port, 30KW or greater power is suitable for flange (type) installation and support foot mounting MR-JHSCBL5M-H
Application example: injection molding machine, semiconductor manufacturing equipment, large conveyor machinery.
High resolution encoder 131072p/rev (17 bit).
The encoder with high resolution ensures excellent performance and stability at low speed.
All motor dimensions are the same as before and all are compatible with the wiring MR-JHSCBL5M-H. Type: HA-SE series.
Rated output: 1.2KW.
Rated speed: 1000r/min.
Electromagnetic brake: there.
Control complex, easy to achieve intelligent,
The electronic commutation method is flexible and can be changed by square wave or sine wave.
Motor maintenance free, high efficiency, low operating temperature,
Electromagnetic radiation is very small, long life, can be used in a variety of environments MR-JHSCBL5M-H.
AC servo motor is brushless motor, which is divided into synchronous and asynchronous motor,
Synchronous machines are commonly used in motion control,
Its power range, you can do a lot of power.
Large inertia, the maximum rotation speed is low, and with the increase of power and rapid reduction.
So it is suitable for the application of low speed and stable operation.
The rotor of the servo motor is permanent magnet,
Drive controlled U/V/W three phase electric electromagnetic field,
The rotor rotates under the action of the magnetic field,
At the same time the motor comes with the encoder feedback signal to the drive,
According to the feedback value and the target value, the driver is compared,
Adjust the rotor rotation angle.
The accuracy of the servo motor is determined by the accuracy of the encoder. 1 axis servo amplifier.
MITSUBISHI general AC servo amplifier MELSERVO-J4 series.
Rated output: 0.6kw.
Interface: General purpose.
Power supply: three phase AC400V.
0.6kW and 1kW above the servo amplifier.
Servo amplifier supporting universal interface.
Servo amplifier for universal interface.
Speed / torque control of position control and analog voltage command can be carried out by using pulse train command.
Support Max instruction pulse frequency 4 Mpulses/s.
2 low frequency vibration can be suppressed at the same time by supporting the seismic algorithm of 3 inertial equipment.
Configurator2 MR to achieve convenient adjustment.
Effectively restrain the low frequency aftershock effect produced by the fronnt end of the boom or the main body of the device 100Hz MR-JHSCBL5M-H.
Can effectively shorten the time to control the stability of the aftershock.
In the XY design of trajectory control, improve the accuracy of arc track.
At the same time, it can eeffectively control the phenomenon of quadrant protrusion caused by the rotation direction of the servo motor, which is caused by friction and twisting MR-JHSCBL5M-H.
