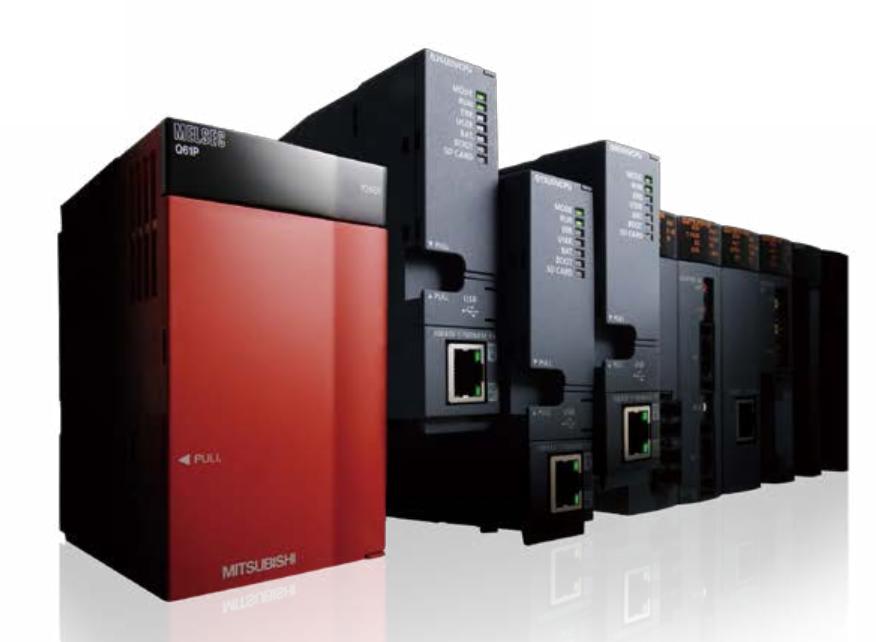

MITSUBISHI Q13UDVCPU Product information and technical parameters：
Brand: MITSUBISHI
Name: General high speed CPU
Model: Q13UDVCPU
Input / output points: 4096 points.
Input / output soft element points: 8192.
Program capacity: 130K step.
Basic operation speed (LD): 1.9ns.
Program memory capacity: 520KB.
Peripheral device connection port: USB, Ethernet (communication support function).
Memory card I/F:SD memory card, extended SRAM card.
Convenient processing of large capacity data.
In the past can not achieve the standard RAM and SRAM card file register area of continuous access,
The boundary of each area should be considered in programming.
The SRAM 8MB extension card is installed in the high speed universal QCPU,
Standard RAM can be used as a continuous file register,
Capacity up to 4736K words, thus simplifying the programming.
Thus, even if the memory space of the soft element is insufficient,
Can also be installed by the expansion of SRAM card, easy to extend the file register area.
The address register is extended to 32 bits, which can be programmed to go beyond the traditional 32K word,
And to achieve the extension to the file register to all regions of the file register.
In addition, the processing speed of the index modification plays an important role in the efficient operation of structured data (array),
The speed has been improved.
When the index is used to modify the program repeatedly (e.g. from FOR to NEXT), the scan time can be reduced.
Support USB and RS232.
Support installed memory card.
Providing high speed communication between multiple CPU.
Shorten the fixed scan interrupt time, high precision device.
The minimum interval of the fixed period interrupt program is reduced to 100 s.
The high speed signal can be accurately obtained, which makes the contribution to the higher precision of the device.
High speed and high precision machine control by multi CPU.
By parallel processing of the linear and multi CPU high-speed communication (cycle 0.88ms) of the parallel control program, the high speed control.
Multi CPU high speed communication cycle and motion control synchronization, so it can achieve the maximization of computing efficiency.
In addition, the latest movement control CPU in performance is 2 times the previous model,
To ensure high speed and high accuracy of the machine control.
...More relevant models >>>>
Q13UDVCPU datasheetPDF datasheet
Q13UDVCPU datasheetPDF datasheet
Q13UDVCPU Special InstructionsStrctured Programming Manual
Q13UDVCPU Application FunctionsStrctured Programming Manual
Q13UDVCPU Common InstructionsStrctured Programming Manual
Q13UDVCPU FundamentalsStrctured Programming Manual
Q13UDVCPU Multiple CPU SystemUser's Manual
Q13UDVCPU Function Explanation, Program FundamentalsUser's Manual
Q13UDVCPU Hardware Design, Maintenance and InspectionUser's Manual
Q13UDVCPU Structured TextProgramming Manual
Q13UDVCPU MELSAP-LProgramming Manual
Q13UDVCPU SFCProgramming Manual
Q13UDVCPU PID Control InstructionsProgramming Manual
Q13UDVCPU Common Instructions 1/2Programming Manual
Q13UDVCPU Structured Text(ST)Programming Guide Book
MITSUBISHI Q13UDVCPU Product information and technical parameters：
Brand: MITSUBISHI
Name: General high speed CPU
Model: Q13UDVCPU
Input / output points: 4096 points.
Input / output soft element points: 8192.
Program capacity: 130K step.
Basic operation speed (LD): 1.9ns.
Program memory capacity: 520KB.
Peripheral device connection port: USB, Ethernet (communication support function).
Memory card I/F:SD memory card, extended SRAM card.
Convenient processing of large capacity data.
In the past can not achieve the standard RAM and SRAM card file register area of continuous access,
The boundary of each area should be considered in programming.
The SRAM 8MB extension card is installed in the high speed universal QCPU,
Standard RAM can be used as a continuous file register,
Capacity up to 4736K words, thus simplifying the programming.
Thus, even if the memory space of the soft element is insufficient,
Can also be installed by the expansion of SRAM card, easy to extend the file register area.
The address register is extended to 32 bits, which can be programmed to go beyond the traditional 32K word,
And to achieve the extension to the file register to all regions of the file register.
In addition, the processing speed of the index modification plays an important role in the efficient operation of structured data (array),
The speed has been improved.
When the index is used to modify the program repeatedly (e.g. from FOR to NEXT), the scan time can be reduced.
Support USB and RS232.
Support installed memory card.
Providing high speed communication between multiple CPU.
Shorten the fixed scan interrupt time, high precision device.
The minimum interval of the fixed period interrupt program is reduced to 100 s.
The high speed signal can be accurately obtained, which makes the contribution to the higher precision of the device.
High speed and high precision machine control by multi CPU.
By parallel processing of the linear and multi CPU high-speed communication (cycle 0.88ms) of the parallel control program, the high speed control.
Multi CPU high speed communication cycle and motion control synchronization, so it can achieve the maximization of computing efficiency.
In addition, the latest movement control CPU in performance is 2 times the previous model,
To ensure high speed and high accuracy of the machine control.
Extended SRAM card 8MB
To record the change of control data without missing.
Data can be collected in a time interval or in a millisecond time interval,
To record the change of the specified control data without any omission.
Therefore, in the event of failure, can quickly determine the cause, the precise action analysis Q13UDVCPU. 5 slots.
Extended substrate.
No need to install power module.
Used to install Q series modules Q13UDVCPU
Reduce system downtime recovery time.
With a simple operation, you can back up all the data in the CPU to the memory card.
Through regular backup, can be the latest parameters, procedures, etc. to save the storage card.
In the event of a CPU failure, after the replacement of CPU, can be a simple operation,
Restore the system by using the data storage card in advance Q13UDVCPU.
Therefore, it is not necessary to spend time to manage the backup data, but also can shorten the recovery time of the system shutdown.
Wider application range, more advanced.
Leading in the era of the Q series CPU products.
Q series CPU products a wide range of applications,
Provide programmable controller, process, redundancy, C language, movement, manipulator, CNC all kinds of CPU,
In order to meet the needs of various control Q13UDVCPU.
Through the multi CPU configuration, can be based on the use of the scale, purpose,
Construction of the best system to meet the requirements of all kinds of control.
In addition, the high reliability system can be constructed by the redundant system,
Even if a fault occurs, the system can continue to run.3 slots.
The main substrate needs to be equipped with CPU and power supply.
Requires 1 power modules.
Used to install Q series modules.
A variety of modules with excellent performance,
Meet the needs of various control from analog to location.
Q series module products include a varriety of types of I/O, analog and positioning function module Q13UDVCPU.
Can fully meet the switch, sensor, such as the input and output, temperature, weight, flow and motor, drive control,
As well as the requirements of high-precision control of thhe positioning of the industry, the control needs of various fields Q13UDVCPU.
Can also be used in combination with the CPU module to achieve appropriate control.
To record the change of control data without missing.
Data can be collected in a time interval or in a millisecond time interval,
To record the change of the specified control data without any omission.
Therefore, in the event of failure, can quickly determine the cause, the precise action analysis Q13UDVCPU. 5 slots.
Extended substrate.
No need to install power module.
Used to install Q series modules Q13UDVCPU
Reduce system downtime recovery time.
With a simple operation, you can back up all the data in the CPU to the memory card.
Through regular backup, can be the latest parameters, procedures, etc. to save the storage card.
In the event of a CPU failure, after the replacement of CPU, can be a simple operation,
Restore the system by using the data storage card in advance Q13UDVCPU.
Therefore, it is not necessary to spend time to manage the backup data, but also can shorten the recovery time of the system shutdown.
Wider application range, more advanced.
Leading in the era of the Q series CPU products.
Q series CPU products a wide range of applications,
Provide programmable controller, process, redundancy, C language, movement, manipulator, CNC all kinds of CPU,
In order to meet the needs of various control Q13UDVCPU.
Through the multi CPU configuration, can be based on the use of the scale, purpose,
Construction of the best system to meet the requirements of all kinds of control.
In addition, the high reliability system can be constructed by the redundant system,
Even if a fault occurs, the system can continue to run.3 slots.
The main substrate needs to be equipped with CPU and power supply.
Requires 1 power modules.
Used to install Q series modules.
A variety of modules with excellent performance,
Meet the needs of various control from analog to location.
Q series module products include a varriety of types of I/O, analog and positioning function module Q13UDVCPU.
Can fully meet the switch, sensor, such as the input and output, temperature, weight, flow and motor, drive control,
As well as the requirements of high-precision control of thhe positioning of the industry, the control needs of various fields Q13UDVCPU.
Can also be used in combination with the CPU module to achieve appropriate control.
