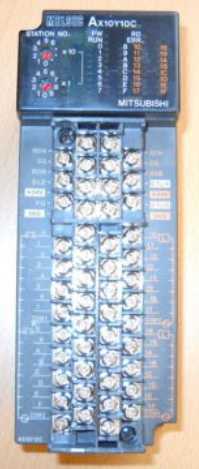

MITSUBISHI MITSUBISHI AX10Y10C Price

MR-J2M multi axis servo amplifier substrate.
Groove position: 4.
The comparison is to compare the input command signal with the feedback signal of the system in order to obtain the deviation signal between the output and the input,
Usually implemented by a dedicated circuit or computer.
The controller is usually a computer or PID control circuit, and its main task is to transform the deviation signal from the output of the comparator,
To control the execution of components as required AX10Y10C Differential output.
Axis of control: 4.
Maximum output pulse: pulse/s 4M.
Location data: 600 data / axis.
Max link distance: 10m.
Start is also simple.
Digital oscilloscope function.
Data collection and data collection in a simple motion controller that is synchronized with the control period.
Waveform display, you can improve the efficiency of the start.
The use of steps in accordance with the auxiliary function can be.
Can be set by different uses of the probe, easy to view the data set.
Can be on the word 16CH, bit 16CH data sampling.
Among them, the word 8CH, bit 8CH data can be displayed in real time.
Monitoring and testing function
Through a wealth of monitoring and testing functions, you can simply start and action check.
Can only choose the necessary items from the rich monitoring information and monitor the display.
Through the test function, do not have to control procedures can also be implemented to confirm the basic action. Motor series: low inertia, low power.
Rated output power: 0.1kw.
Rated speed: 3000r/min.
Whether with brake: No.
Axis end: D type shaft.
Protection level: IP55 does not include the shaft part and the connector.
Features: low inertia is particularly suitable for high speed motor (6000 or 12000 RPM / min) of general industrial machinery.
Application example 1: drive belt drive, robot.
Application example 2: assembly machine, sewing machine, X-Y working table.
Application example 3: food manufacturing machinery, semiconductor manufacturing equipment, knitting machine and embroidery machine.
High resolution encoder 131072p/rev (17 bit).
The encoder with high resolution ensures excellent performance and stability at low speed.
All motor dimensions are the same as before and all are compatible with the wiring.
AX10Y10C Operation manual / Instructions / Catalog download link: /searchDownload.html?Search=AX10Y10C&select=5
