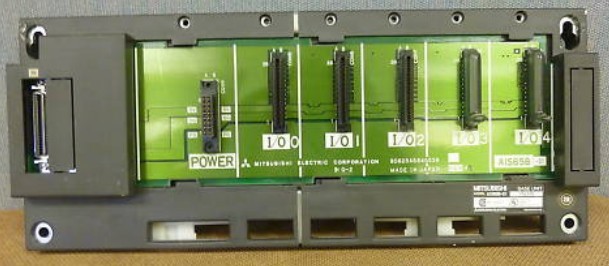

A1S65B-S1 Expansion substrate capable of mounting power supply
MITSUBISHI A1S65B-S1 Manual And Instructions
A1S65B-S1 datasheetPDF datasheet
MITSUBISHI A1S65B-S1 Product information and technical parameters：
Brand: MITSUBISHI
Name: Expansion substrate capable of mounting power supply
Model: A1S65B-S1
I/O slots: 5 slots.
Could you install the power module.
Outline dimension: 315*130.
There are two types of extended floor,
A power module can be inserted, and the other one is not.
The choice of any type of substrate depends on the total DC5V current consumption and the power supply on the CPU main substrate.
If the total demand is less than the power output, no additional power supply,
Then you can choose a more economical expansion board.
Both ends of the main base plate of the CPU have an expansion interface, and can be used for extending the cable connection.
