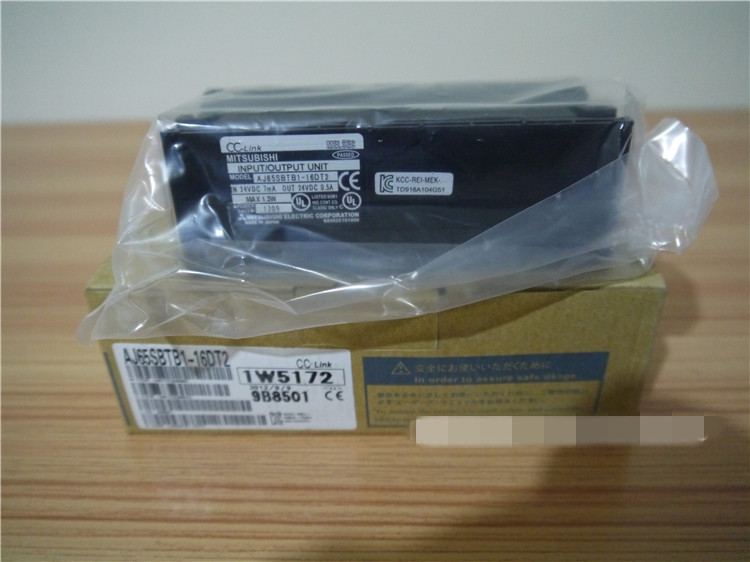

AJ65SBTB1-16DT2 DC input / transistor output module
MITSUBISHI AJ65SBTB1-16DT2 Manual And Instructions
AJ65SBTB1-16DT2 datasheetPDF datasheet
MITSUBISHI AJ65SBTB1-16DT2 Product information and technical parameters：
Brand: MITSUBISHI
Name: DC input / transistor output module
Model: AJ65SBTB1-16DT2
Input type: DC input, positive common end.
Input points: 8 points.
Enter the response time: 1.5ms the following.
Rated input voltage / current: DC24V/7mA.
Output form: transistor output, leakage type.
Output points: 8 points.
OFF leakage current: 0.1mA.
Output protection function: No.
Rated load voltage / current: DC24V/0.5A.
External connection: 1 line /1 line type.
According to the external connection mode and the external equipment input and output specifications,
Choose from a rich product lineup.
Finger protection through the upper part of the terminal,
The human body will not be exposed to live parts,
Therefore, the terminal station type remote I/O module can be directly mounted to the machine tool.
