>> AJ65SBTC4-16DT2 Fast connector type DC input / output module

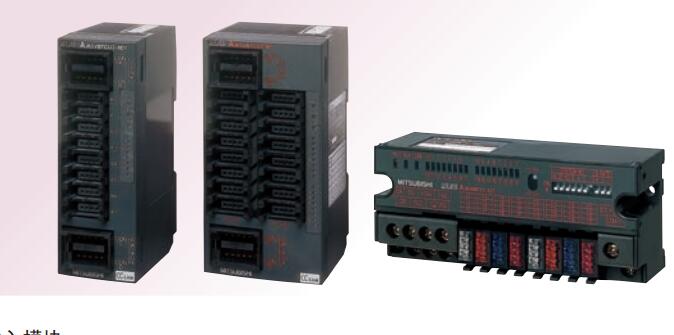

AJ65SBTC4-16DT2 Fast connector type DC input / output module
MITSUBISHI AJ65SBTC4-16DT2 Manual And Instructions
AJ65SBTC4-16DT2 datasheetPDF datasheet
MITSUBISHI AJ65SBTC4-16DT2 Product information and technical parameters：
Brand: MITSUBISHI
Name: Fast connector type DC input / output module
Model: AJ65SBTC4-16DT2
Input type: DC input, positive common end.
Input points: 8 points.
Enter the response time: 1.5ms the following.
Rated input voltage / current: DC24V/5mA.
Output form: transistor output, leakage type.
Output points: 8 points.
OFF leakage current: 0.1mA.
Output protection function: No.
Rated load voltage / current: DC24V/0.5A.
External connection: 4 wire.
Fast connector type.
Simple wiring through quick connector.
Can be installed along the 6 direction.
MITSUBISHI PLC program simulation debugging
The basic idea of program simulation debugging is,
In order to facilitate the form of simulation to generate the actual state of the scene,
Create the necessary environmental conditions for the operation of the program.
Depending on the way the field signals are generated,
The simulation debugging has two forms of hardware simulation and software simulation.
