>> AJ65SBTC1-32T Fast connector type transistor output module

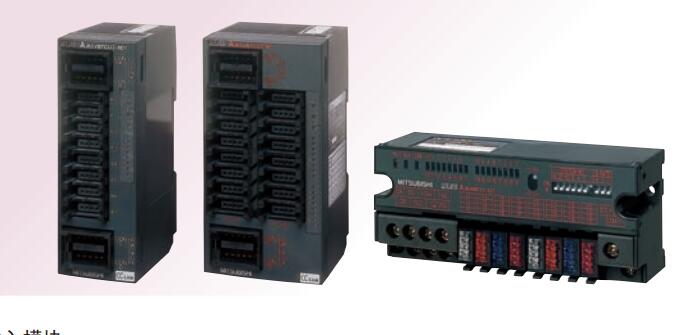

AJ65SBTC1-32T Fast connector type transistor output module
MITSUBISHI AJ65SBTC1-32T Manual And Instructions
AJ65SBTC1-32T datasheetPDF datasheet
MITSUBISHI AJ65SBTC1-32T Product information and technical parameters：
Brand: MITSUBISHI
Name: Fast connector type transistor output module
Model: AJ65SBTC1-32T
Output type: transistor output, drain type.
Output points: 32 points.
OFF leakage current: 0.25mA.
Output protection function.
Rated load voltage / current: DC24V/DC24V/0.1A.
External connection: 1 wire.
Fast connector type.
Simple wiring through quick connector.
Can be installed along the 6 direction.
MITSUBISHI PLC program simulation debugging
The basic idea of program simulation debugging is,
In order to facilitate the form of simulation to generate the actual state of the scene,
Create the necessary environmental conditions for the operation of the program.
Depending on the way the field signals are generated,
The simulation debugging has two forms of hardware simulation and software simulation.
