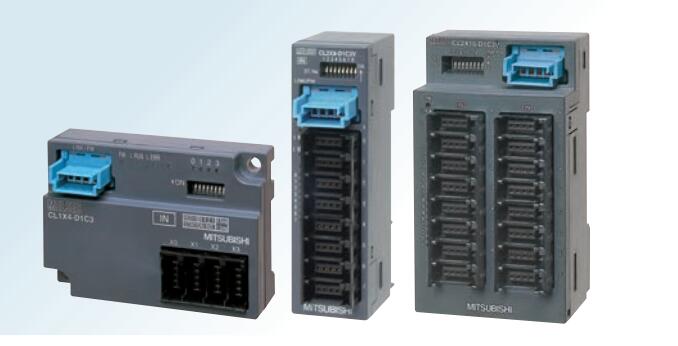

CL2X16-D1C3V Sensor connection type input module
MITSUBISHI CL2X16-D1C3V Manual And Instructions
CL2X16-D1C3V datasheetPDF datasheet
MITSUBISHI CL2X16-D1C3V Product information and technical parameters：
Brand: MITSUBISHI
Name: Sensor connection type input module
Model: CL2X16-D1C3V
Input type: DC input, positive common end.
Input points: 16 points.
Input response time: 0.5ms below /1.5ms.
Rated input voltage / current: DC24V/4mA.
External connection: 3 wire.
Sensor connection type.
Minimum size of industry.
When installing the module can choose to use the DIN guide rail or screw mounting.
3 wire sensor input.
