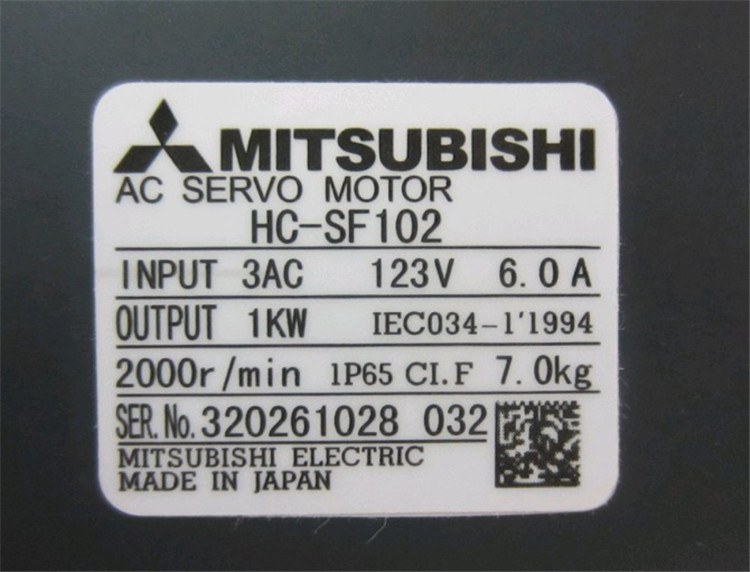

HC-SF102 Medium inertia medium capacity motor
MITSUBISHI HC-SF102 Manual And Instructions
HC-SF102 datasheetPDF datasheet
MITSUBISHI HC-SF102 Product information and technical parameters：
Brand: MITSUBISHI
Name: Medium inertia medium capacity motor
Model: HC-SF102
Motor series: medium inertia, medium capacity.
Using a serial absolute / incremental encoder.
Rated output power: 1.0kw.
Rated speed: 2000rpm.
With the brake: without.
Shaft end: straight shaft.
The rotor of AC servo motor is usually made of squirrel cage, but in order to make the servo motor has a wide range of speed regulation, linear mechanical properties,
Without the "rotation" phenomenon and the performance of the fast response, it is compared with the ordinary motor,
The two characteristics of rotor resistance and moment of inertia should be provided.
At present, there are two kinds of rotor structure, one is the squirrel cage rotor, which is made of conductive material with high resistivity,
In order to reduce the moment of inertia of the rotor, the rotor is slender.
