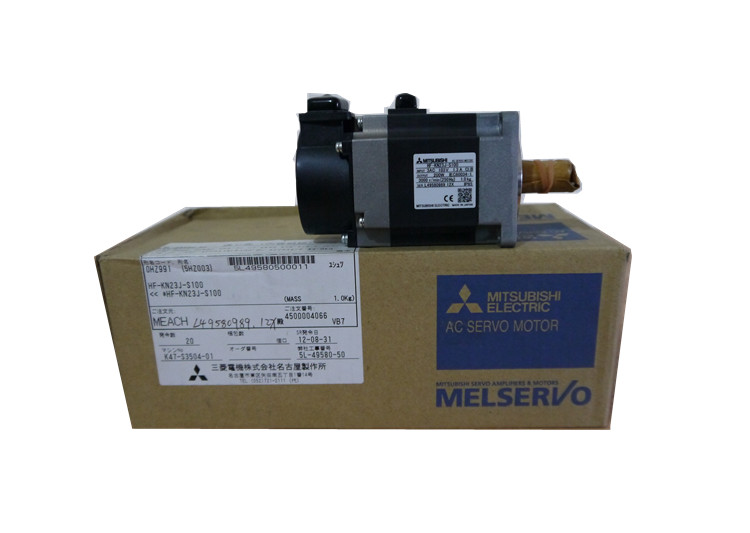

HF-KN23J-S100 General motors for MR-JE and MR-E
MITSUBISHI HF-KN23J-S100 Manual And Instructions
HF-KN23J-S100 datasheetPDF datasheet
MITSUBISHI HF-KN23J-S100 Product information and technical parameters：
Brand: MITSUBISHI
Name: General motors for MR-JE and MR-E
Model: HF-KN23J-S100
Type: HF-KN servo motor, low inertia, low power.
Rated output power: 0.2kw.
Rated speed: 3000r/min.
Electromagnetic brake: there.
Oil seal: have.
Encoder resolution: 131072p/r.
S100 representative: Super MR-E special motor.
KH003 special mark for Super MR-E.
High performance and easy to operate, reduce work load.
Enhanced system cost performance.
High performance, high precision positioning (servo motor encoder resolution: 131072).
High response.
Suppression of vibration by adaptive vibration suppression control.
Using personal computer and servo setup software to optimize tuning.
Has 2 types of interfaces:
Position control and speed control with pulse train interface.
The analog input interface is used for speed control and torque control.
Wide use.
Machining equipment and machine tool feed.
Used for food, packaging equipment and feeding device.
For textile machinery, etc..
Can improve the performance of equipment.
Servo amplifier terminals are used to reduce the required wiring time.
The connector is located in front of the servo amplifier, which is convenient for cable connection.
The gain adjustment can be easily carried out by the real-time automatic tuning function.
