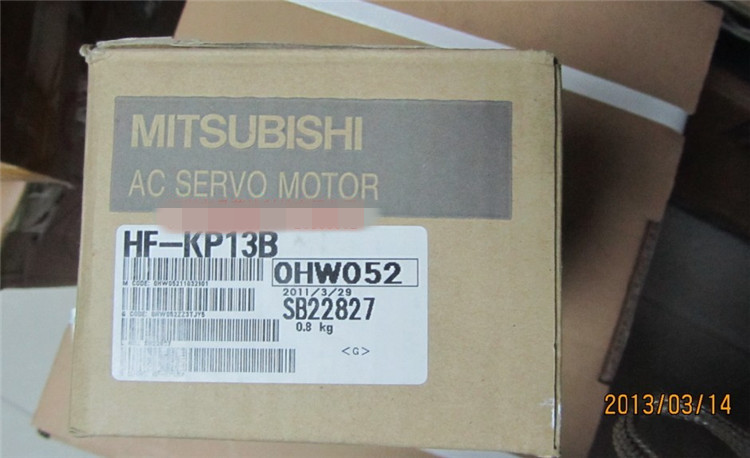

HF-KP13B Low inertia small power servo motor

MITSUBISHI Low inertia small power servo motorHF-KP13B

HF-KP13B Introduce | HF-KP13B Catalog / Manual / Instructions / Software download

MITSUBISHI HF-KP13B Manual And Instructions
HF-KP13B datasheetPDF datasheet

MITSUBISHI HF-KP13B Product information and technical parameters：
Brand: MITSUBISHI
Name: Low inertia small power servo motor
Model: HF-KP13B
Servo motor series: low inertia, low power.
Rated output: 0.1kw.
Rated speed: 3000r/min.
Electromagnetic brake: with.
Shaft end specification: Standard (straight axis).
Features: low inertia is widely used in general machinery.
IP level: IP65.
Application example:
1, belt drive.
2, industrial robots.
3, assembly machinery.
4, industrial sewing machine.
5, X-Y working table.
6, food processing machinery.
7, semiconductor manufacturing equipment.
8, knitting machine and embroidery machine.
Rotary servo motor.
Numerous motor series and wide motor power range can be used to meet different applications.
The protection level of the HF-KP/HF-MP/HC-LP/HC-RP/HC-UP servo motor to improve the environmental safety is IP65 (except the shaft part).

Servo motor series: low inertia, medium / high power.
Rated output: 30.0kw.
Rated speed: 1500r/min.
Electromagnetic brake: No.
Shaft end specification: Standard (straight axis).
Voltage: 400V level.
Features: low inertia has low medium and high speed three models, suitable for different applications as a standard, 30KW and above servo motor can be installed flange or bracket HF-KP13B.
IP level: IP44 HF-KP13B
Application example:
1, injection molding machine.
2, semiconductor manufacturing equipment.
3, large material handling system.
4, stamping machine.
Abundant motor product line can optimize the performance of the machine.
Has a rich motor product line including a rotary servo motor, linear servo motor and direct drive motor HF-KP13B. Motor series: medium inertia, medium power.
Rated output power: 2.0kw.
Rated speed: 2000r/min.
Whether to bring the brakes: with.
Shaft end: Standard (straight).
Power supply: 400V type.
Protection level: IP65 (IP67).
Features: medium inertia from low speed to high speed three modes for selection, suitable for different applications.
Application examples: transmission machinery, robots, X-Y working platform HF-KP13B.
High resolution encoder 131072p/rev (17 bit).
The encoder with high resolution ensures excellent performance and stability at low speed.
All motor dimensions are the same as before and all are compatible with the wiring. 1 axis servo amplifier.
MITSUBISHI general AC servo amplifier MELSERVO-J4 series.
Rated output: 11.0kw.
Interface: SSCNET III /H.
Power supply: three phase AC400V.
0.6kW and 1kW above the servo amplifier.
Servo amplifier supporting SSCNET III /H.
Complete synchronization system capable of using high speed serial optical communication.
Can be combined with the servo system controller to maximize the performance of the servo system.
Improve mechanical properties by high performance motor.
By improving the resolution and processing speed of the encoder,
The rotating servo mmotor has higher precision and better performance of rotation HF-KP13B.
Only open a key type of adjustment function, can be carried out including mechanical resonance filter, high end seismic control II, low pass filter servo gain adjustment.
Easilyy start advanced seismic function, it can maximize the mechanical properties HF-KP13B.
It can automatically adjust the required response settings automatically.
