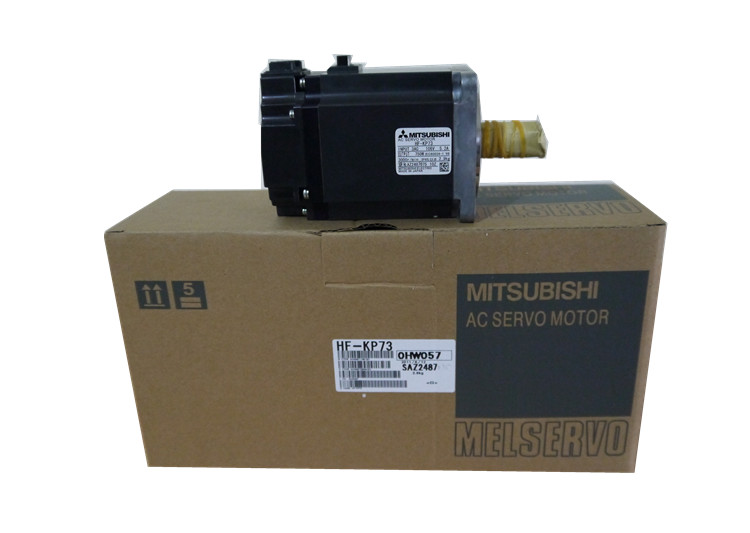

HF-KP73 Low inertia small power servo motor

MITSUBISHI Low inertia small power servo motorHF-KP73

HF-KP73 Introduce | HF-KP73 Catalog / Manual / Instructions / Software download

MITSUBISHI HF-KP73 Manual And Instructions
HF-KP73 datasheetPDF datasheet

MITSUBISHI HF-KP73 Product information and technical parameters：
Brand: MITSUBISHI
Name: Low inertia small power servo motor
Model: HF-KP73
Servo motor series: low inertia, low power.
Rated output: 0.75kw.
Rated speed: 3000r/min.
Electromagnetic brake: No.
Shaft end specification: Standard (straight axis).
Features: low inertia is widely used in general machinery.
IP level: IP65.
Application example:
1, belt drive.
2, industrial robots.
3, assembly machinery.
4, industrial sewing machine.
5, X-Y working table.
6, food processing machinery.
7, semiconductor manufacturing equipment.
8, knitting machine and embroidery machine.
Rotary servo motor.
Numerous motor series and wide motor power range can be used to meet different applications.
The protection level of the HF-KP/HF-MP/HC-LP/HC-RP/HC-UP servo motor to improve the environmental safety is IP65 (except the shaft part).

MITSUBISHI motor universal AC servo amplifier MELSERVO-J3 series.
Rated output: 0.1kw.
Interface type: CC-Link communication type (built-in positioning function).
Power specification: single phase AC200V.
Positioning operation by setting position and rotational speed data in the positioning table and receiving the start signal from the main controller HF-KP73.
The setting of the position and speed of the positioning table, as well as the start and stop operation can be completed through CC-Link communication HF-KP73
By using the MR-J3-D01 extension IO unit, the DI/O instruction can be used to select and locate the table.
(CC-Link can not be used for MR-J3-D01 communications).
With built-in positioning function of the servo amplifier, can be set through the CC-Link communications and speed data HF-KP73. (corresponding to the CC-Link version: Ver.1.10)
Can be achieved through the CC-Link communications to start, stop and monitoring and other operations.
Serial communication reduce wiring.
Distributed servo control system can be built by CC-Link communication.
The parameters of unit MR-PRU03 (optional) the parameter setting, operation and monitoring more convenient HF-KP73.
The servo amplifier can be used for speed control operation.
When the two stations are occupied, the speed can be set directly by the remote register. "MITSUBISHI general purpose AC servo amplifier MELSERVO-J2-Super series.
Rated output: 7.0kw.
Universal interface.
Voltage: 3 phase AC200VAC or single phase AC230V.
Super function, excellent performance.
Super function, excellent performance.
High performance CPU integration, greatly improve product responsiveness.
Due to the application of high performance CPU, so that the response can be greatly improved.
Speed loop frequency response increased to more than 550HZ.
MR-J2-Super series is the best device for high speed positioning applications.
Easy adjustment.
Model adaptive control / advanced real time auttomatic tuning HF-KP73.
Mechanical analysis function.
Can analysis of the frequency characteristics of the mechanical system, the results can be easily set up "mechanical resonance suppression filter"
Mechanical simulation function.
The function cann be realized without the actual replacement of the motor HF-KP73. Read mechanical analysis results to simulate the response of the user''s mechanical system. "
