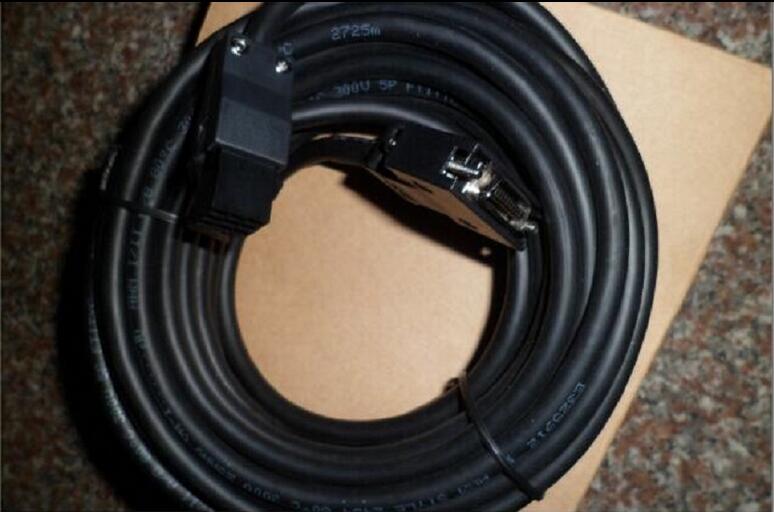

MR-J2CNS Encoder connector

Motor series: medium inertia, medium capacity.
Using a serial absolute / incremental encoder.
Rated output power: 5.0kw.
Rated speed: 2000rpm.
With a brake band.
Shaft end: straight shaft.
The rotor of AC servo motor is usually made of squirrel cage, but in order to make the servo motor has a wide range of speed regulation, linear mechanical properties,
Without the "rotation" phenomenon and the performance of the fast response, it is compared with the ordinary motor,
The two characteristics of rotor resistance and moment of inertia should be provided MR-J2CNS MR-J2CNS
At present, there are two kinds of rotor structure, one is the squirrel cage rotor, which is made of conductive material with high resistivity,
In order to reduce the moment of inertia of the rotor, the rotor is slender MR-J2CNS. MITSUBISHI general purpose AC servo amplifier MELSERVO-J2-Super series.
Rated output: 22.0kw.
Universal interface.
Voltage: 3 phase AC200VAC or single phase AC230V.
Super function, excellent performance.
Super function, excellent performance.
High performance CPU integration, greatly improve product responsiveness.
Due to the application of high performance CPU, so that the response can be greatly improved MR-J2CNS.
Speed loop frequency response increased to more than 550HZ.
MR-J2-Super series is the best device for high speed positioning applications.
Easy adjustment.
Model adaptive control / advanced real time automatic tuning.
Mechanical analysis function.
Can analysis of the frequency characteristics of the mechanical system, the results can be easily set up "mechanical resonance suppression filter"
Mechanical simulation function.
The function can be realized without the actual replacement of the motor. Read mechanical analysis results to simulate the response of the user''s mechanical system.Servo motor series: low inertia, medium / high power.
Rated output: 2.0kw.
Rated speed: 3000r/min.
Electromagnetic brake: No.
Shaft end specification: Standard (straight axis).
Features: low inertia for high speed / acceleration and deceleration operation occasions.
IP level: IP67.
Application example:
1, food processing machinery.
2, printing machine.
3, injection molding machine (11KW, 15KW).
4, large press machine (11KW, 15KW).
The protection level of the HF-SP/HF-JP series servo motor is IP67 (except the shaft part).
Low inertia of the power servo motor (0.5kW ~ 9kW), the maximum speed: 6000r/min (rated speed: 3000r/min),
Suitable for high frequency positioning and acceleration / deceleration operations, especially for food processing machines and printing machines.
Low inertia, high power, no cooling fan servo motor (11kW and 15kW), maximum speed: 3000r/min (rated speed: 1500r/min).
The motor structure is more compact due to the adoption of the non cooling fan design, and the connnection is reduced by using the power source connector MR-J2CNS.
(compared with the HF-LP series servo motor with the same power, the volume is reduced by about 46%, and the weight is reduced by about 34%,
Suitable for high frequency positioning annd acceleration / deceleration operations, especially for injection molding machines and large presses MR-J2CNS.
HF-JP703 (4) /903 (4) maximum speed: 5000r/min.
