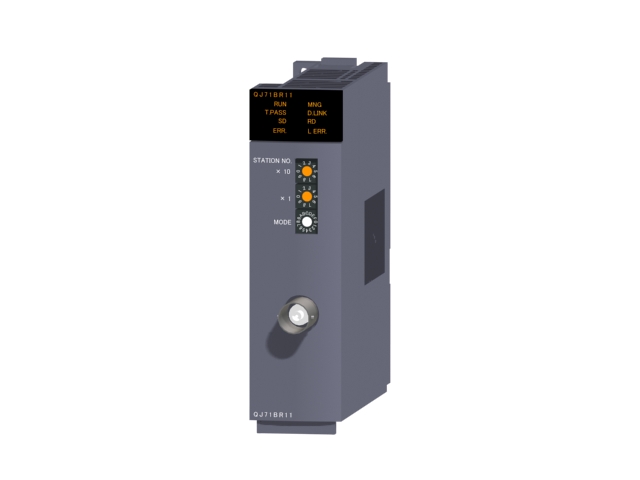

QJ71BR11 Coaxial bus module
MITSUBISHI QJ71BR11 Manual And Instructions
QJ71BR11 Remote I/O networkReference Manual
QJ71BR11 PLC to PLC networkreference Manual
MITSUBISHI QJ71BR11 Product information and technical parameters：
Brand: MITSUBISHI
Name: Coaxial bus module
Model: QJ71BR11
3C-2V/5C-2V coaxial cable.
Single bus.
PLC to PLC network (control station / common station) / remote I/O net (remote master station).
MELSECNET/H network module capable of composing large scale flexible network system.
The MELSECNET/H network system includes the PLC network of the control station and the communication between the stations and the remote I/O network in the remote station remote I/O station.
Optical fiber loop system...... High speed communication of 10Mbps/25Mbps is realized.
The distance between stations, the length of the total cable length, strong anti-interference.
Coaxial bus system...... Using low cost coaxial cable, the network construction cost is lower than that of the optical fiber loop network.
Twisted pair bus system...... Combined with high performance price ratio network module and twisted pair cable,
The construction cost of network system is very low.
...More relevant models >>>>
