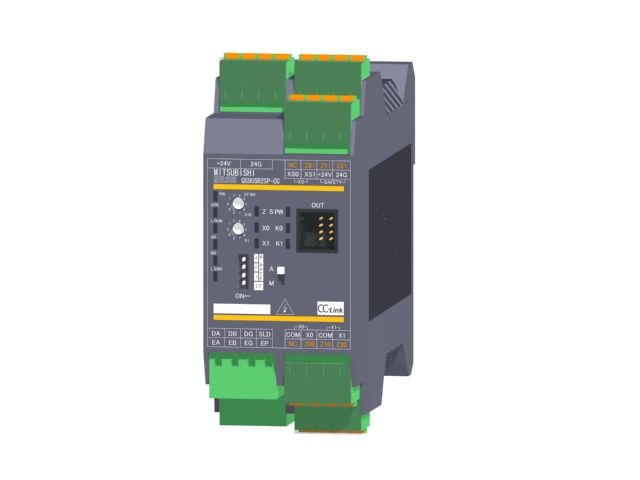

QS90SR2SP-CC Safety relay module
MITSUBISHI QS90SR2SP-CC Manual And Instructions
QS90SR2SP-CC datasheetPDF datasheet
QS90SR2SP-CC User's Manual
QS90SR2SP-CC Safety Application Guide
QS90SR2SP-CC Safety Guideline
QS90SR2SP-CC Safety Guideline
MITSUBISHI QS90SR2SP-CC Product information and technical parameters：
Brand: MITSUBISHI
Name: Safety relay module
Model: QS90SR2SP-CC
Meet safety standards: EN954-1 class 4, 13849-1 PL e ISO.
Safe input points: 1 points (2 input).
Start input points: 1.
Input type: P type (positive public end / positive public end input)
Safe output points: 1 points (3 output).
Spring clip terminal.
Additional security system.
Simply connect to the existing CC-LINK, you can add an independent security features.
Saving wiring by CC-link connection.
The wiring is not needed in particular to the condition monitoring of the safety relay module, and realizes the wiring of the cabinet and the other provinces.
Visualization of installation status.
Can monitor the safe output, as well as the safety input and the internal state of the relay, in the safety circuit to facilitate the identification of the reasons for the start.
