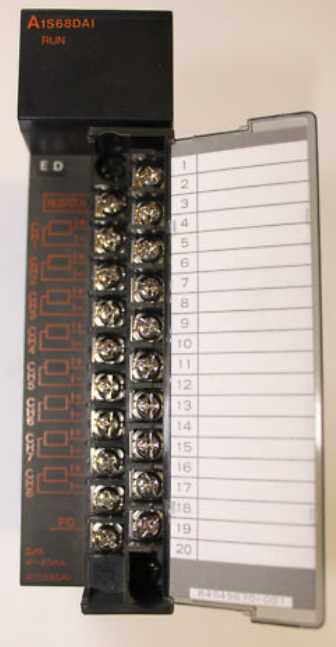

A1S68DAI Analog output module
MITSUBISHI A1S68DAI Manual And Instructions
A1S68DAI datasheetPDF datasheet
A1S68DAI User's Manual
A1S68DAI HardwareUser's Manual
MITSUBISHI A1S68DAI Product information and technical parameters：
Brand: MITSUBISHI
Name: Analog output module
Model: A1S68DAI
Analog output DC4-20mA.
8 channel analog output module.
Ans series has now launched a dedicated 8 channel D/A components,
Both voltage output and current output can be provided.
In this way, the user system to provide a higher density of D/A features,
The same method is used to maintain the same output voltage or current output.
