>> FR-D740 inverter 3 phase 400V
>> FR-D740-1.5K-CHT 3 phase 400V converter

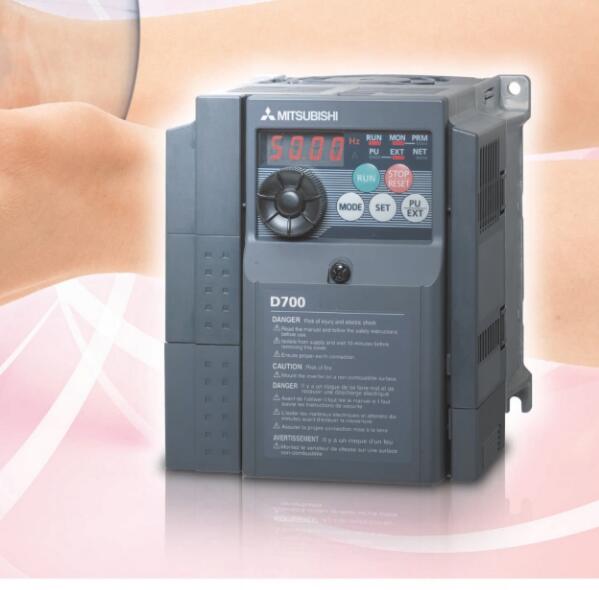

FR-D740-1.5K-CHT 3 phase 400V converter
MITSUBISHI FR-D740-1.5K-CHT Manual And Instructions
FR-D740-1.5K-CHT datasheetPDF datasheet
FR-D740-1.5K-CHT BASICInstruction manual
MITSUBISHI FR-D740-1.5K-CHT Product information and technical parameters：
Brand: MITSUBISHI
Name: 3 phase 400V converter
Model: FR-D740-1.5K-CHT
MITSUBISHI inverter FR-D740 series.
Voltage level: three phase 400V.
Frequency converter capacity: 1.5KW.
The internal and back of the inverter structure considering the cooling effect, the relationship between the upper and lower ventilation is also important,
Therefore, in order for the type of unit, hanging on the wall to the vertical position, the installation of vertical as possible.
Transducer can be used to drive a single phase motor? Can single phase power supply be used?
Basically can not be used. For a single phase motor with governor switch, the auxiliary winding will be burnt when the speed is below the operating point;
For the capacitor start or capacitor operation mode, the capacitor explosion will be induced.
The inverter power supply is usually 3, but the capacity for small, single-phase power is also useful functioning aircraft.
