>> MR-J2S-20B SSCNET interface servo amplifier

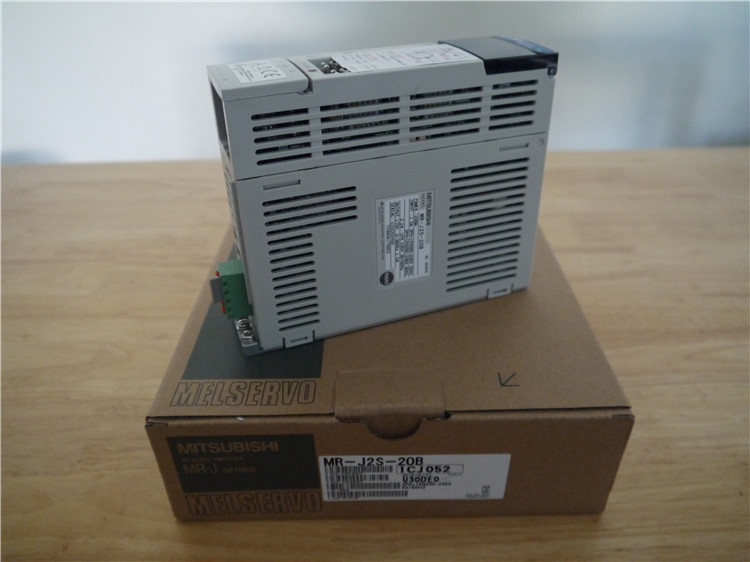

MR-J2S-20B SSCNET interface servo amplifier
MITSUBISHI MR-J2S-20B Manual And Instructions
MR-J2S-20B datasheetPDF datasheet
MR-J2S-20B INSTRUCTION MANUAL
MITSUBISHI MR-J2S-20B Product information and technical parameters：
Brand: MITSUBISHI
Name: SSCNET interface servo amplifier
Model: MR-J2S-20B
"MITSUBISHI general purpose AC servo amplifier MELSERVO-J2-Super series.
Rated output: 0.2kw.
SSCNET interface.
Voltage: 3 phase AC200VAC or single phase AC230V.
Complete synchronization system with SSCNET high speed serial communication,
The communication cycle between the controller and the servo amplifier is the longest 0.888ms.
Such systems will be able to provide high reliability and high performance.
When connecting the servo system with SSCNET,
In the motion system, the parameters of the servo amplifier and the acquisition of the data will be displayed on the motion controller.
Connect a dedicated cable with an amplifier and a controller to form a SSCNET system.
This simple connection method reduces the routing time and helps to prevent noise.
Even in the MELSERVO-J2-SUPER series products using high resolution coding standards, the command frequency is no limit.
It is only necessary to add a battery on the servo amplifier, which can form the absolute value system.
Currently there are more than 1000000 high reliability SSCNET servo amplifier networks in use. "
