FX1S-30MR-DS PLC
MITSUBISHI FX1S-30MR-DS Manual And Instructions
FX1S-30MR-DS datasheetPDF datasheet
FX1S-30MR-DS PROGRAMMING MANUAL II
FX1S-30MR-DS HARDWARE MANUAL
MITSUBISHI FX1S-30MR-DS Product information and technical parameters：
Brand: MITSUBISHI
Name: PLC
Model: FX1S-30MR-DS
Max input / output points: 30 points.
Power supply voltage: 24VDC.
Input points: 16 points.
Output points: 14 points.
Output type: relay.
Power consumption (W): 8.
Weight (kg):0.35.
Size (WxHxD) mm:100x90x49.

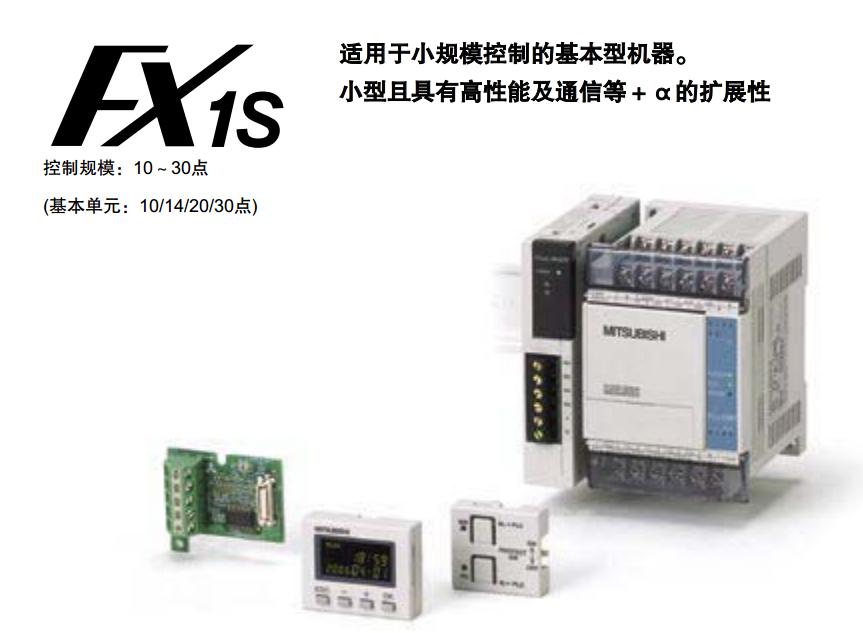

Host has 10 points (6I/4O), 14 points (8I/6O), 20 points (12I/8O), 30 points (16I/14O) of 4 types.
This type of PLC is mainly used in all of the digital input, digital output control point of the device.
Can be directly connected to the 220V city power, built-in 8K step EEPROM memory, no battery, easy to maintain.
The series transistor output (MT) of the PLC, can be output 2 100KHz pulse, direct drive servo or stepper motor.
The series PLC can not be brought with the expansion module, but can be installed by the BD board to extend a small amount of I/O.
The series 1N through the installation of BD series PLC board, can achieve RS232, RS485, RS422 communication.
All equipment is digital input and output point.
The total I/O points are not more than 30 points, and the input points are less than 16, the output points are less than 14.
Its MT series of PLC can drive 2 way servo or stepper, commonly used in the control system for a simple manipulator.
